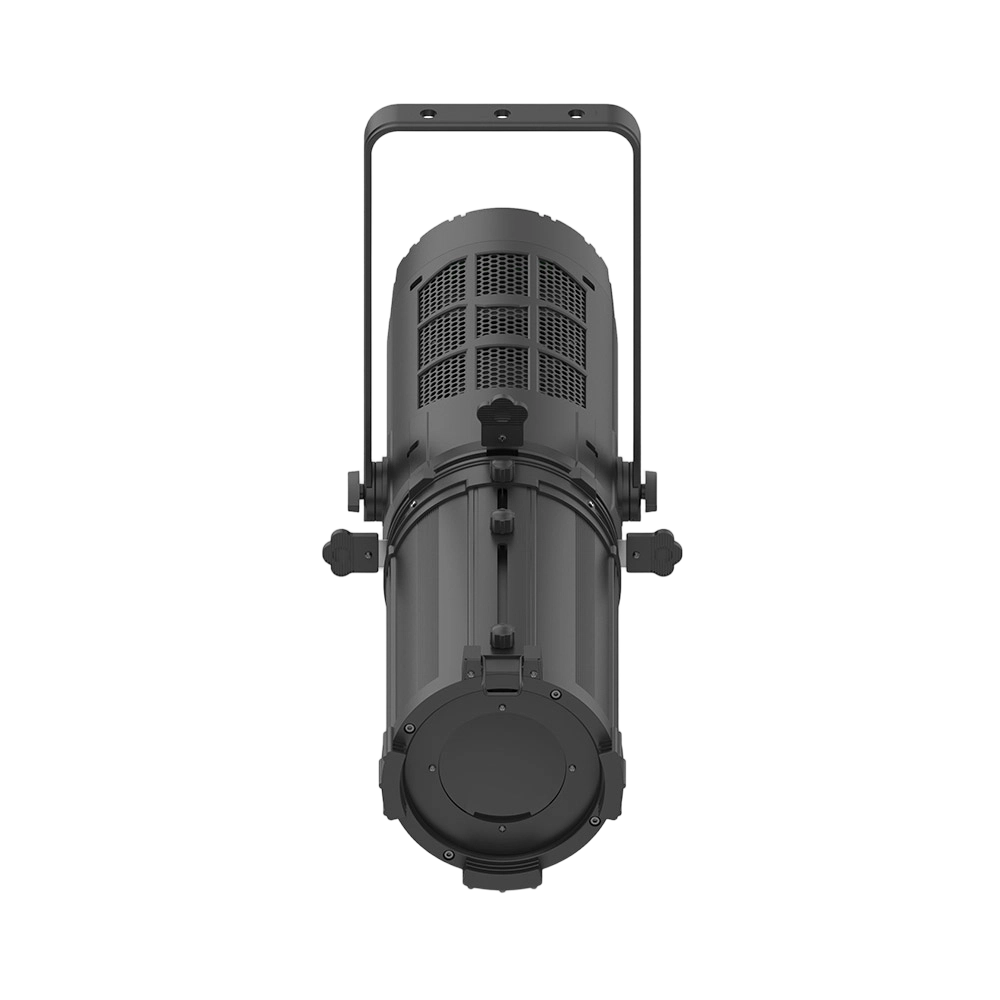

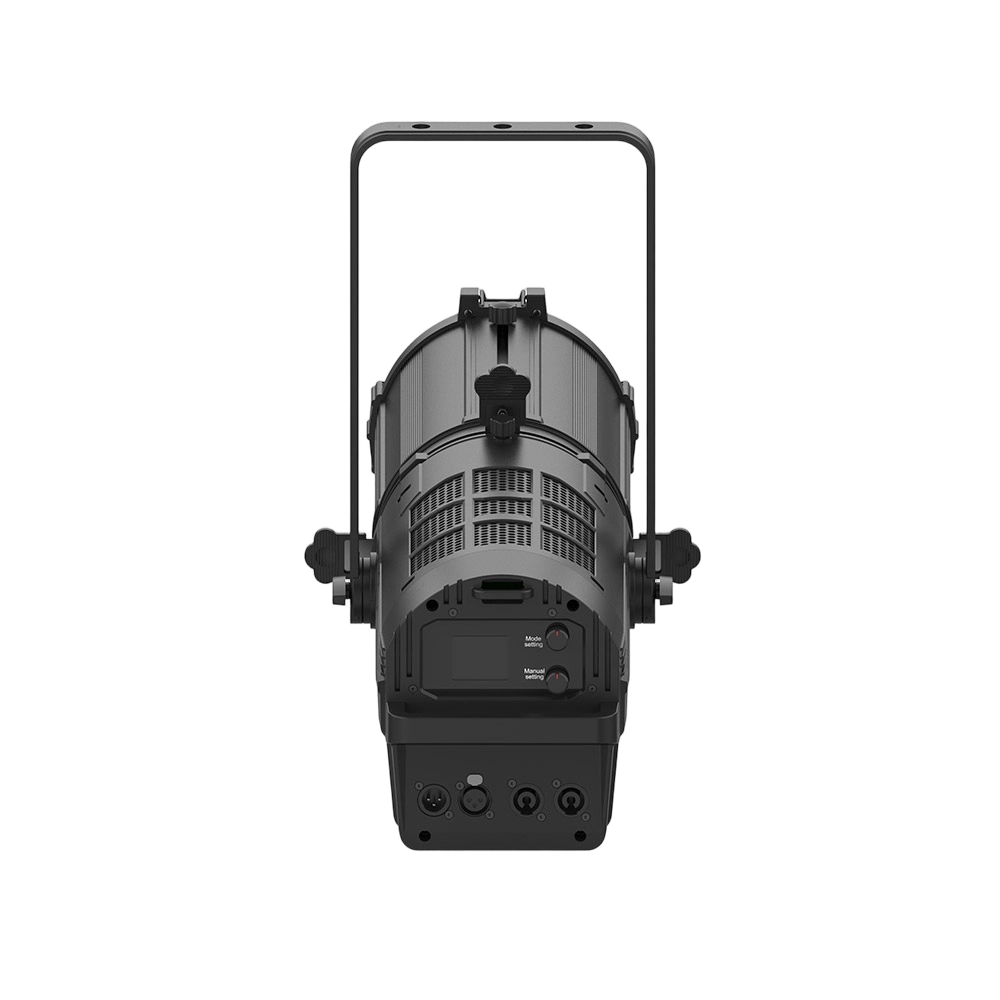

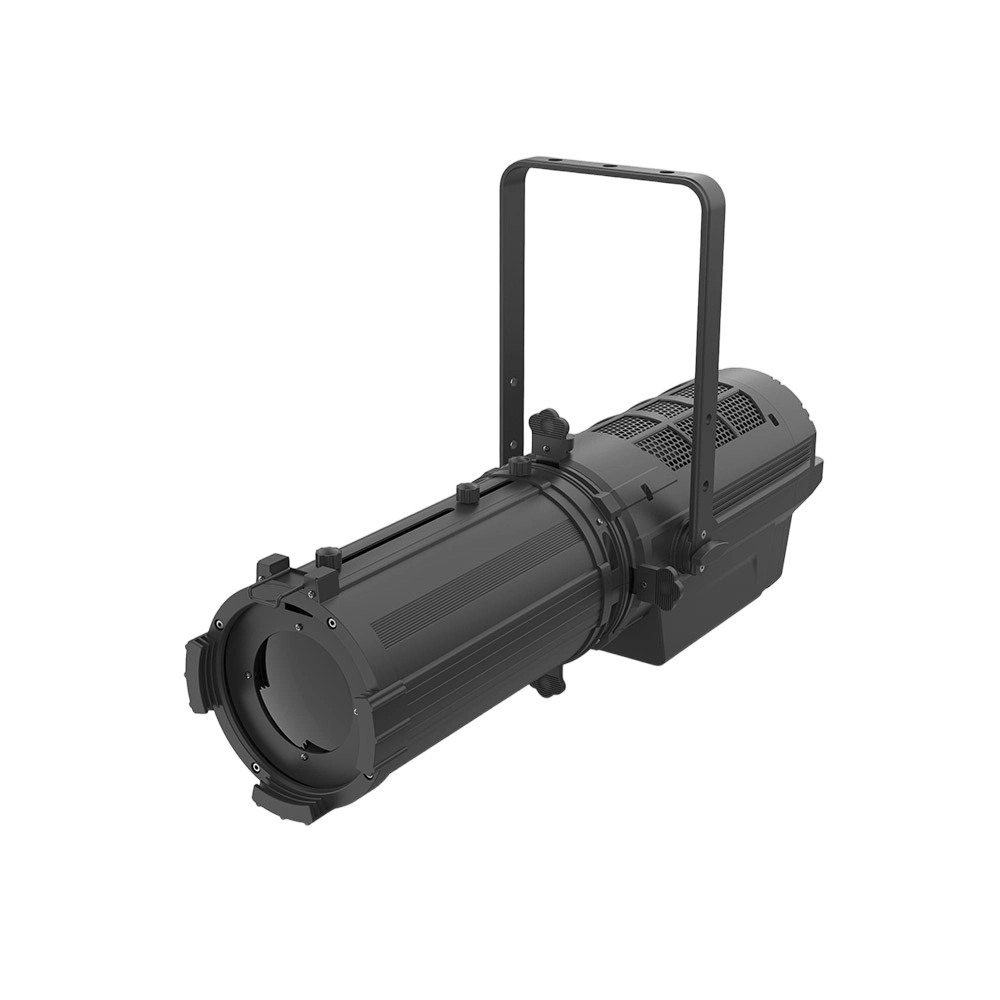

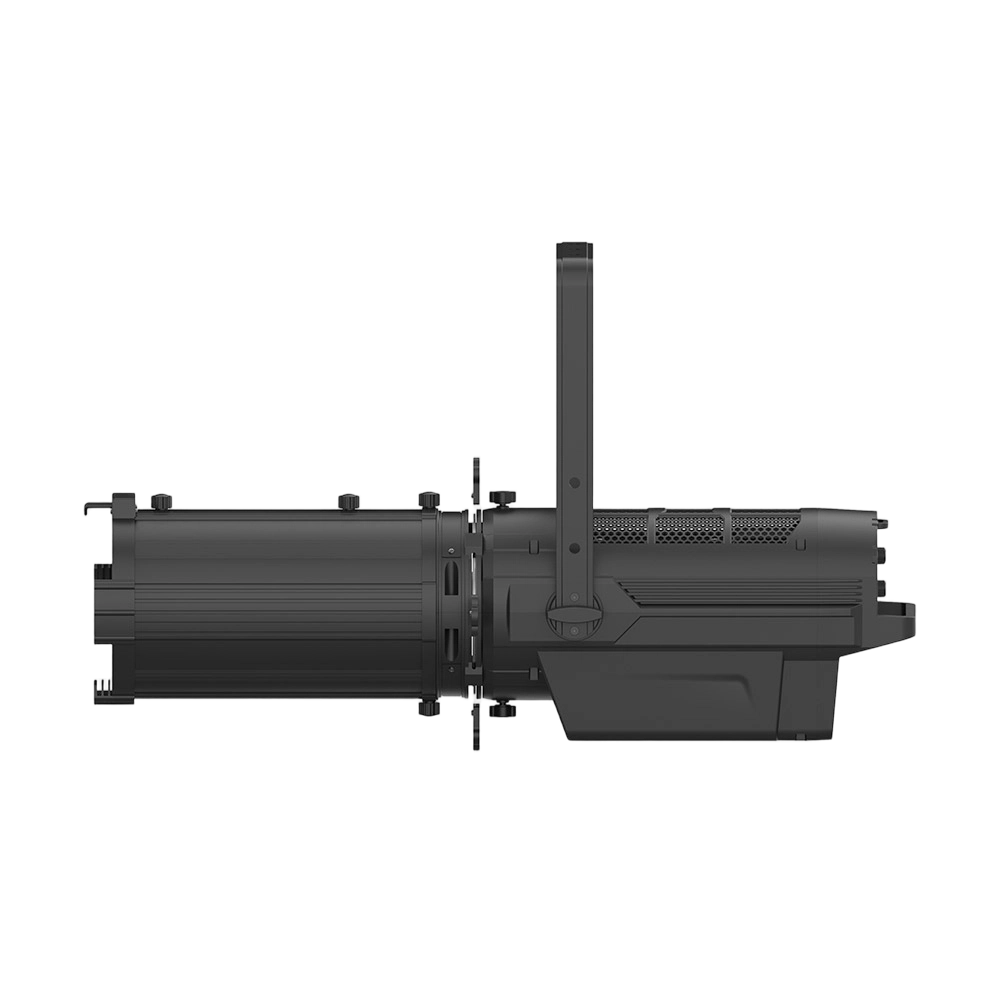

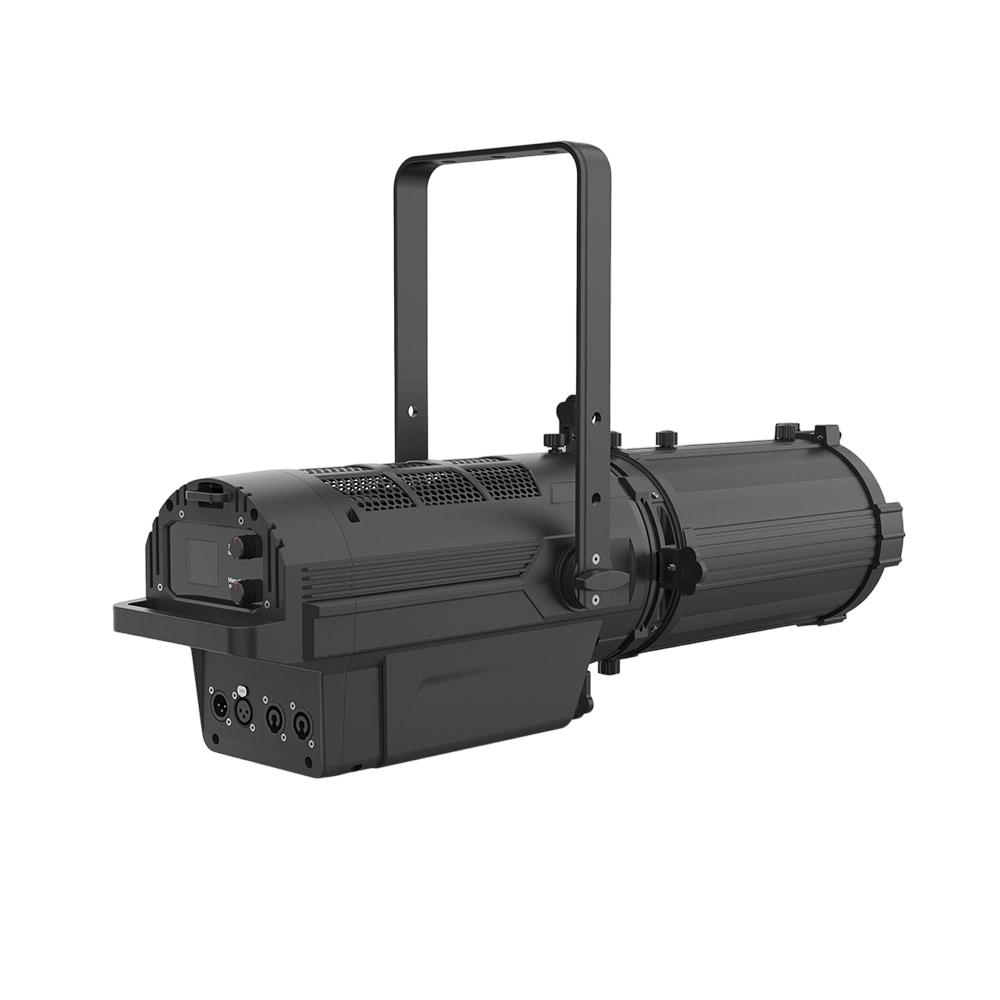

200W-ZOOM LED Profile Spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90); selectable CCT (Bi-Color/Tunable White), 3200K warm white, and 5600K cold white.
Features
0-100% flicker-free linear dimming, beam angles of 10°/19°/26°/36°/50° or continuous zoom, and supports the DMX512/RDM protocol; supports custom gobos. Energy saving of 60%-70% compared to traditional tungsten lights, light source lifespan ≥ 50,000 hours, eliminating frequent replacements; die-cast aluminum housing + intelligent silent cooling.
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | 200W adjustable color temperature high-color-rendering-index LED COB light bead |
| Power Supply Voltage | AC100~240V, 50/60Hz |
| Rated Power | 200W |
| Light Source Lifetime | Up to 50,000 hours |
| Color Rendering Index | Ra (CRI) ≥ 90, R9 90, TLCI 90 |
| Color Temperature | 3200K-5600K adjustable |
| Dimming | 0~100% linear dimming, ensuring no flicker, jitter, or abrupt changes during the process for smoother dimming and color transition, and clearer, more realistic imaging for photography |
| Control Panel | TFT color screen + two knobs |
| Channel Mode | 3CH |
| Optics | Specialized combination lens for profile spots, adjustable 17°-50°, built-in four barn doors for convenient shaping of various patterns, 24K flicker-free light source management system |
| Cooling Method | Copper tube heat sink + intelligent silent fan cooling system |
| Noise Level | ≤30 dB at 1 meter |
| Temperature Monitoring | Built-in temperature protection sensor with automatic power adjustment for overheating protection. Real-time display of operating temperature on the panel |
| Control Modes | DMX wired/wireless signal optional / Manual mode |
| Protection Rating | IP20 |
| Accessories | Power cable, signal cable, pattern holder (optional) |
| Net Weight | 10.55 kg |
| Gross Weight | 12.5 kg |
| Fixture Dimensions | 765 × 260 × 260 mm |
| Packaging Dimensions | 830 × 310 × 295 mm |

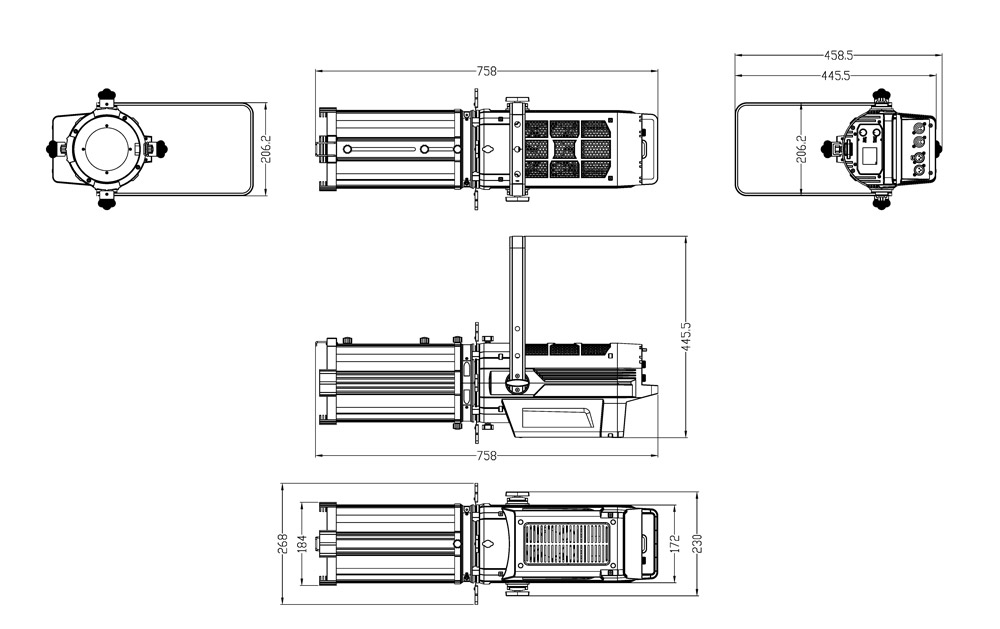

Dimensions
Applications
Suitable for applications such as facial lighting in theaters, TV studios, museums, and high-end exhibition halls, as well as precise stage area lighting.

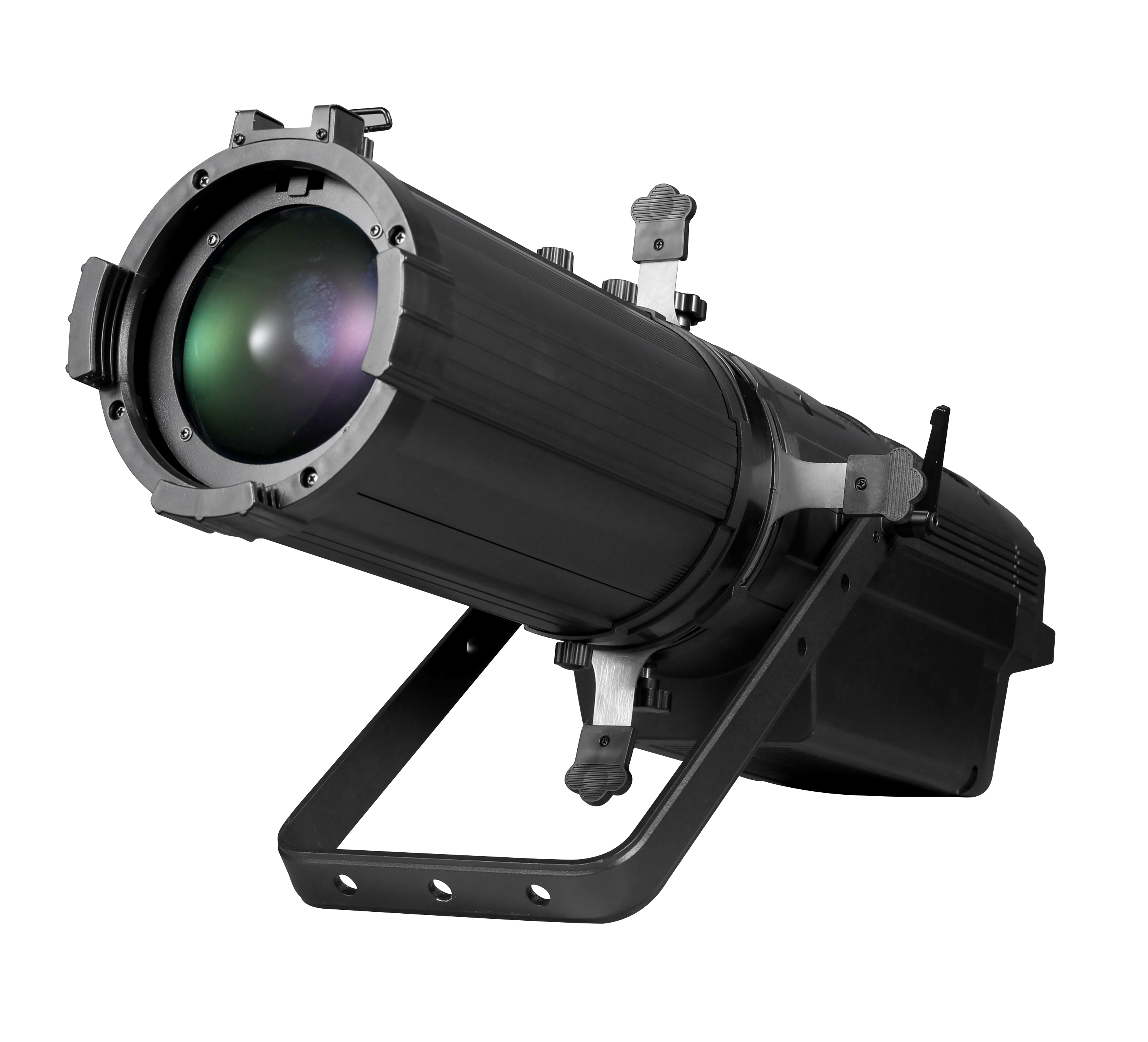

200W LED Profile Spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90), selectable CCT (Bi-Color/Tunable White), 3200K warm white, 5600K cold white
400W Profile spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90), selectable CCT (Bi-Color/Tunable White), 3200K warm white, and 5600K cold white.
300 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
100W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props. The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Flexible color temperature options include 3200K (warm white tungsten), 5600K (cool white daylight), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
