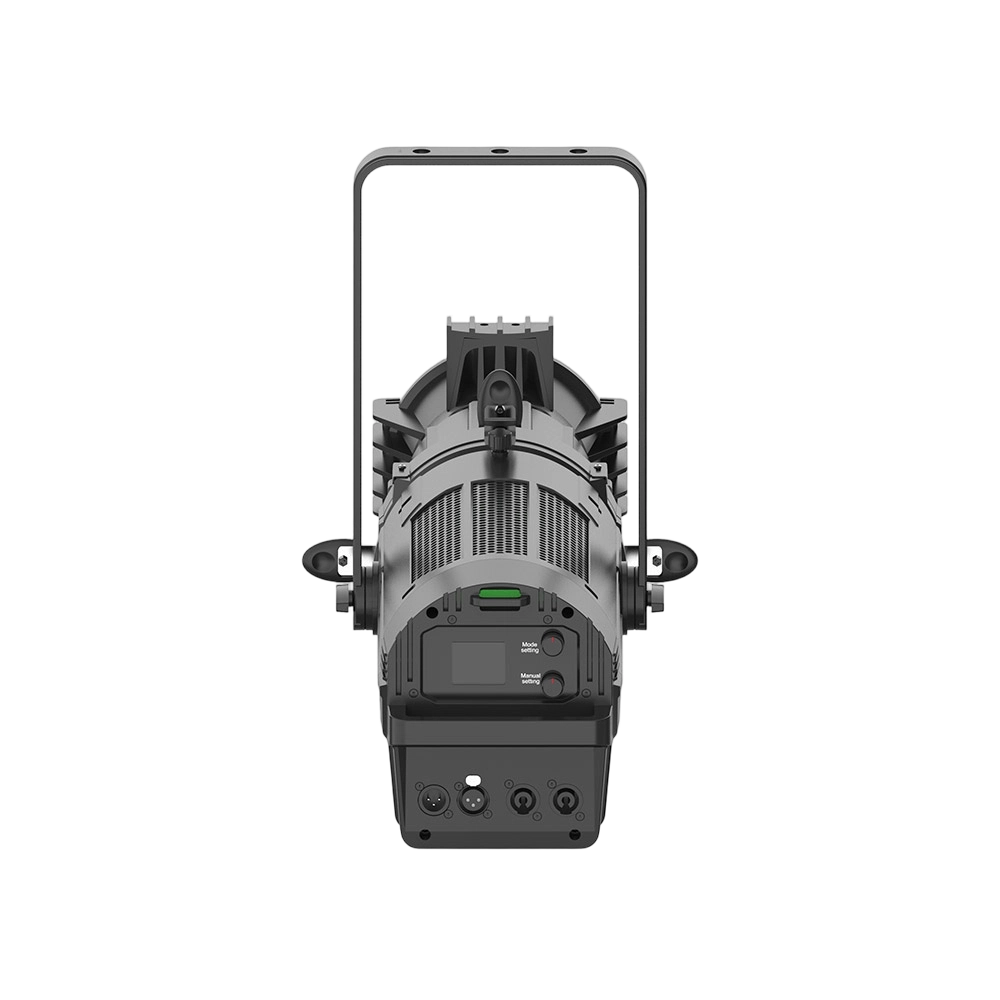

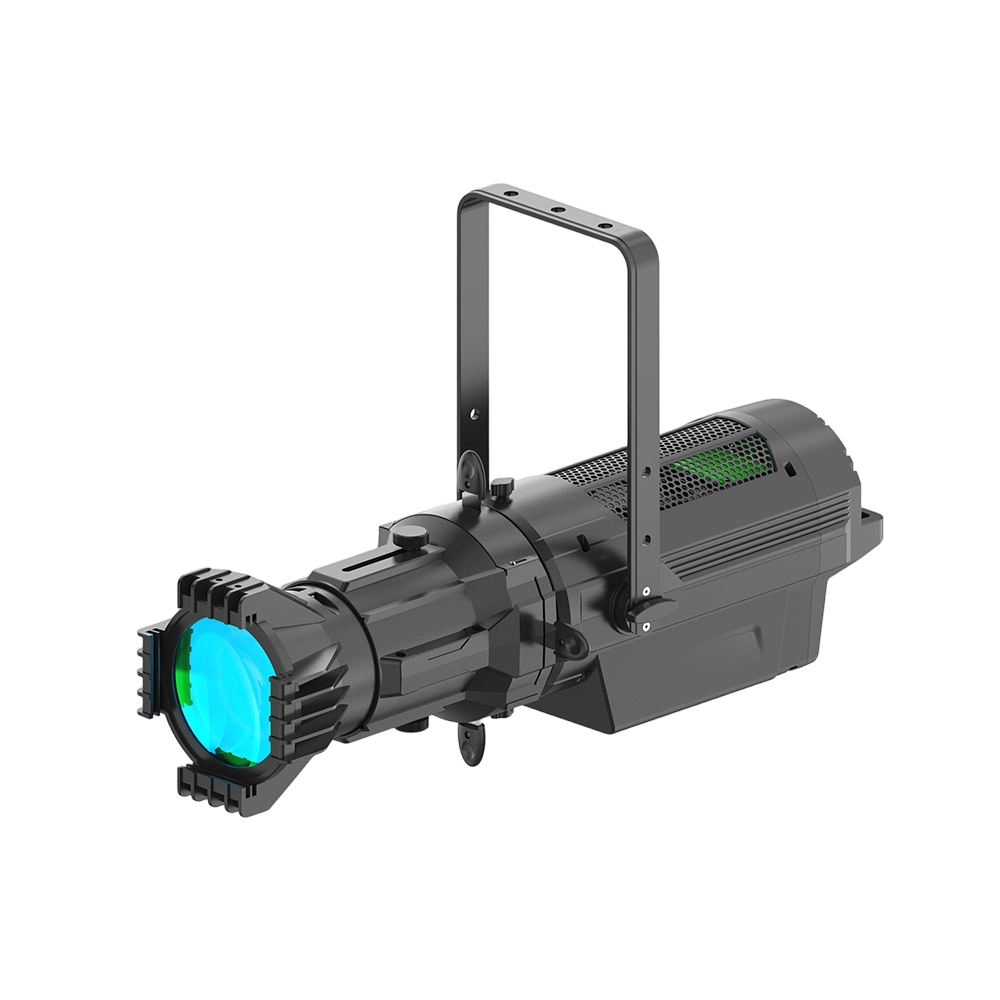

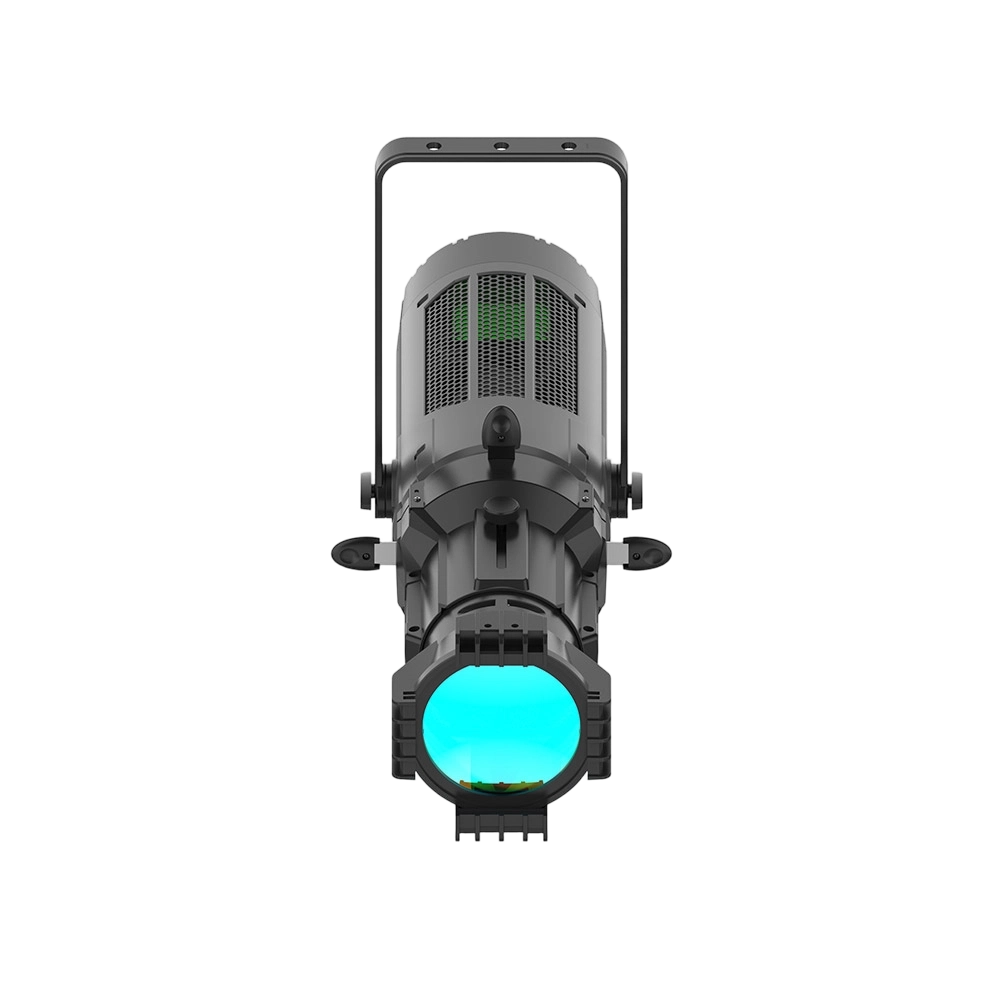

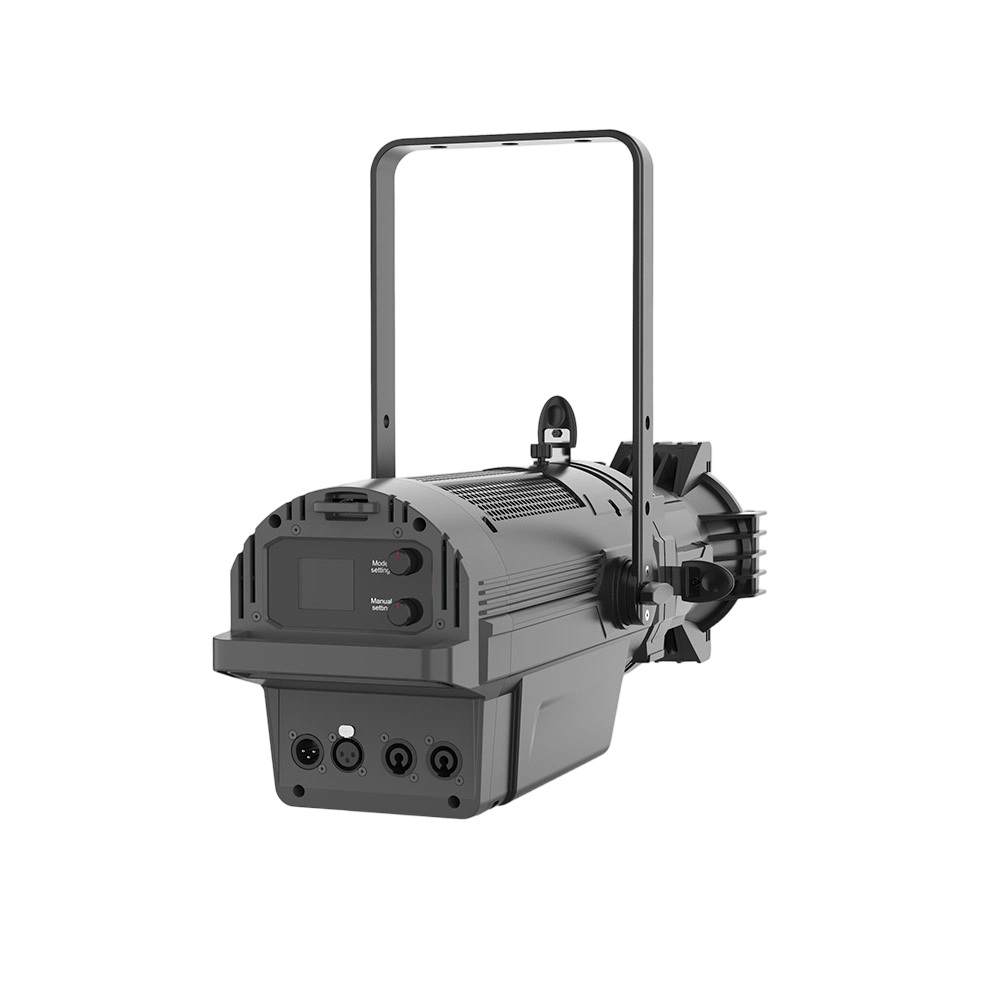

200W LED Profile Spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90), selectable CCT (Bi-Color/Tunable White), 3200K warm white, 5600K cold white
Features
0-100% flicker-free linear dimming, beam angles of 10°/19°/26°/36°/50° or continuous zoom, supports the DMX512/RDM protocol, and supports custom gobos. Energy saving of 60%-70% compared to traditional tungsten lights, light source lifespan ≥ 50,000 hours, eliminating frequent replacements; die-cast aluminum housing + intelligent silent cooling.
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | 200W High CRI LED COB |
| Power Supply Voltage | AC100~240V, 50/60Hz |
| Rated Power | 200 W |
| Light Source Lifespan | ≥50,000 hours |
| Color Rendering Index | Ra (CRI) ≥95, R9 ≥90, TLCI ≥95 |
| Color Temperature | 3200K-5600K Adjustable |
| Dimming | 0~100% Linear Dimming, ensuring flicker-free, jitter-free, and seamless transitions for smooth dimming and color adjustment |
| Channel Mode | 1CH/2CH/4CH/5CH |
| Control Panel | LCD Display + Rotary Dimmer |
| Optics | Glass Optics, optional 10°/14°/19°/26°/36°/50°, built-in four barn doors for easy shaping with distortion-free cutoffs, 24K flicker-free light source management system |
| Cooling Method | Copper Heat Pipe + Intelligent Silent Fan Cooling System |
| Noise Level | ≤30 dB at 1 meter |
| Temperature Monitoring | Built-in temperature protection sensor with automatic power adjustment for overheating protection; real-time display of operating temperature on the control panel |
| Control Modes | DMX/Manual Control/RDM |
| Protection Rating | IP20 |
| Accessories | Power Cable, Signal Cable, Pattern Gobo Holder (optional) |
| Net Weight | 9.8 kg |
| Gross Weight | 11.5 kg |
| Fixture Dimensions | 740 × 260 × 260 mm |
| Packaging Dimensions | 790 × 310 × 395 mm |

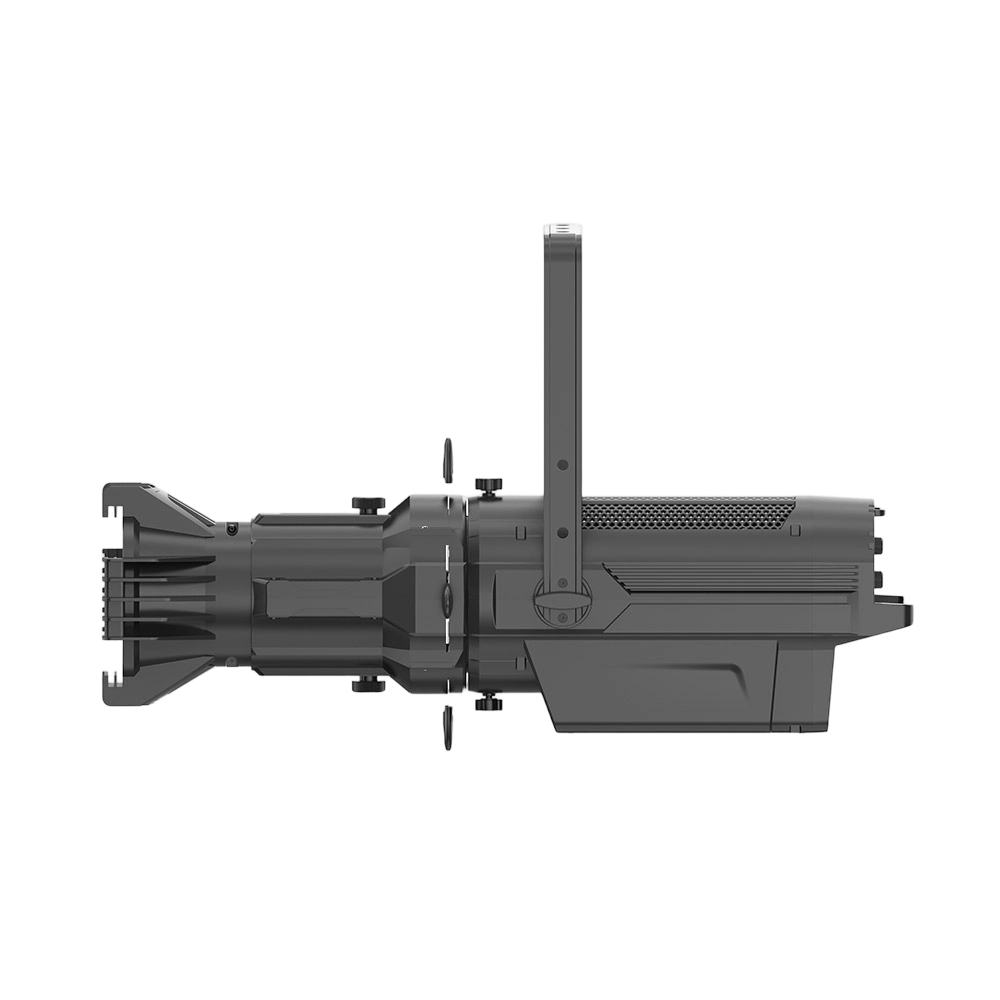

Dimensions
Applications
Suitable for applications such as facial lighting in theaters, TV studios, museums, and high-end exhibition halls, as well as precise stage area lighting.
200W-ZOOM LED Profile Spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90); selectable CCT (Bi-Color/Tunable White), 3200K warm white, and 5600K cold white.

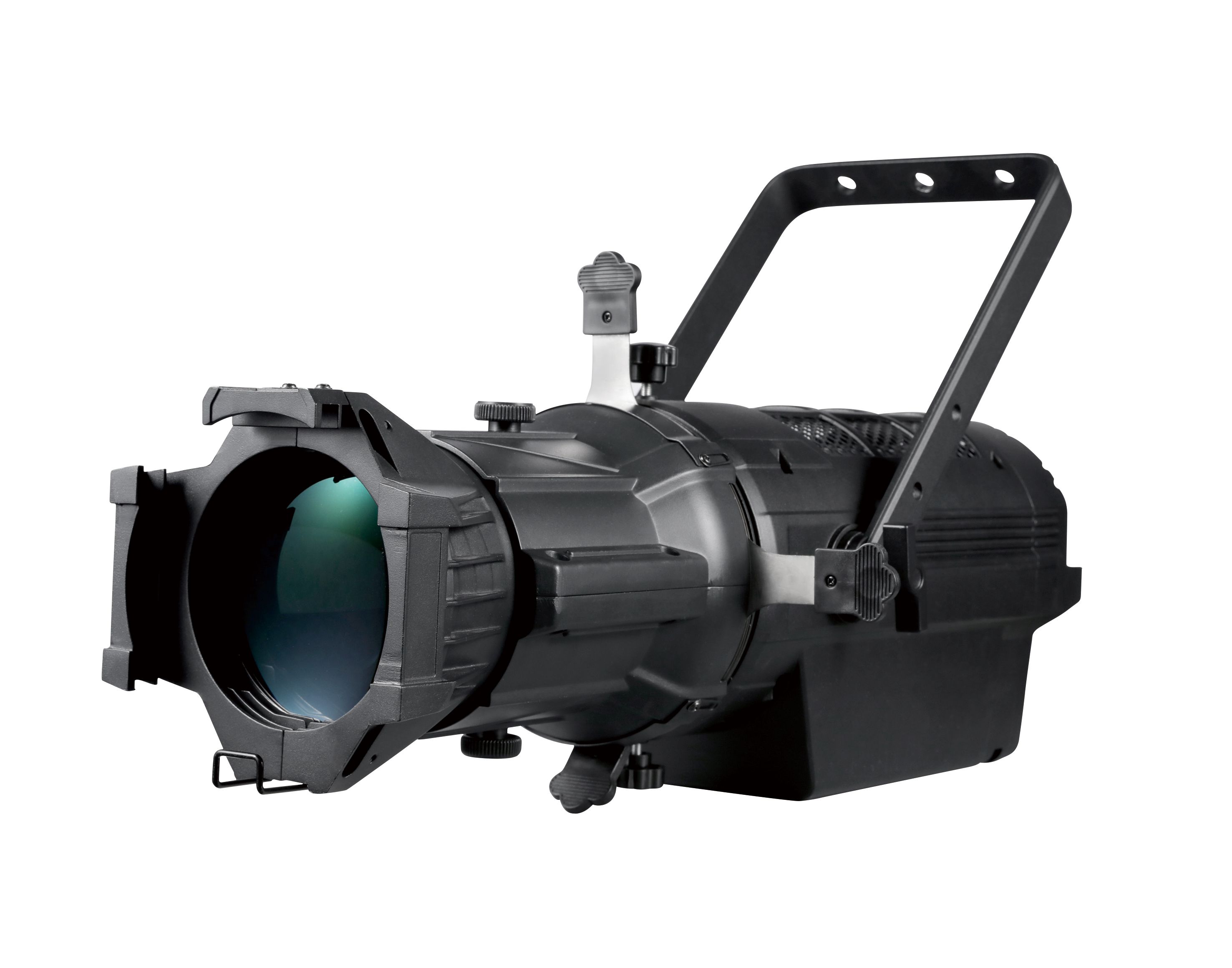

400W Profile spot light
LED imaging lights utilize high-power COB LEDs as the light source, combined with professional coated optical lens groups and shutters/framing blades, to achieve sharp, clear light spots, precise shape cutting, and uniform, stray-light-free projection. Core advantages: High Color Rendering Index (Ra ≥ 95, TLCI ≥ 90), selectable CCT (Bi-Color/Tunable White), 3200K warm white, and 5600K cold white.
300 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
100W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props. The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Flexible color temperature options include 3200K (warm white tungsten), 5600K (cool white daylight), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
