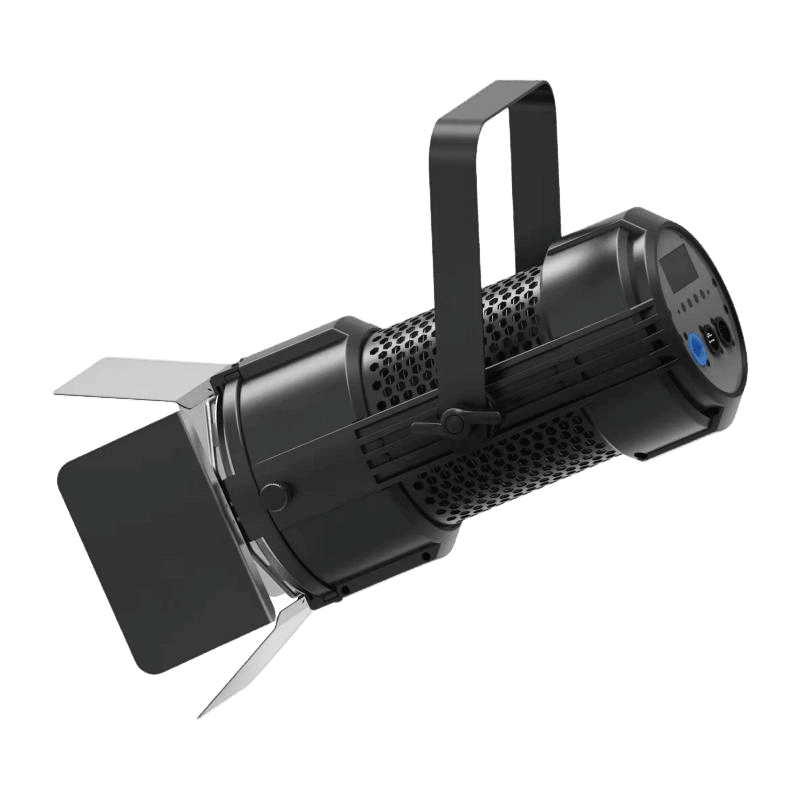

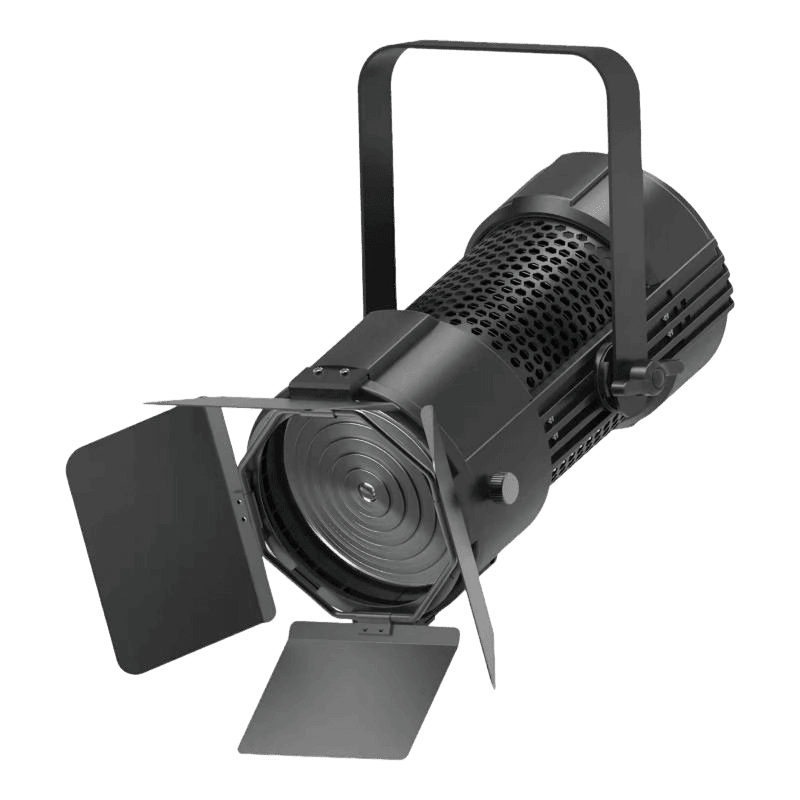

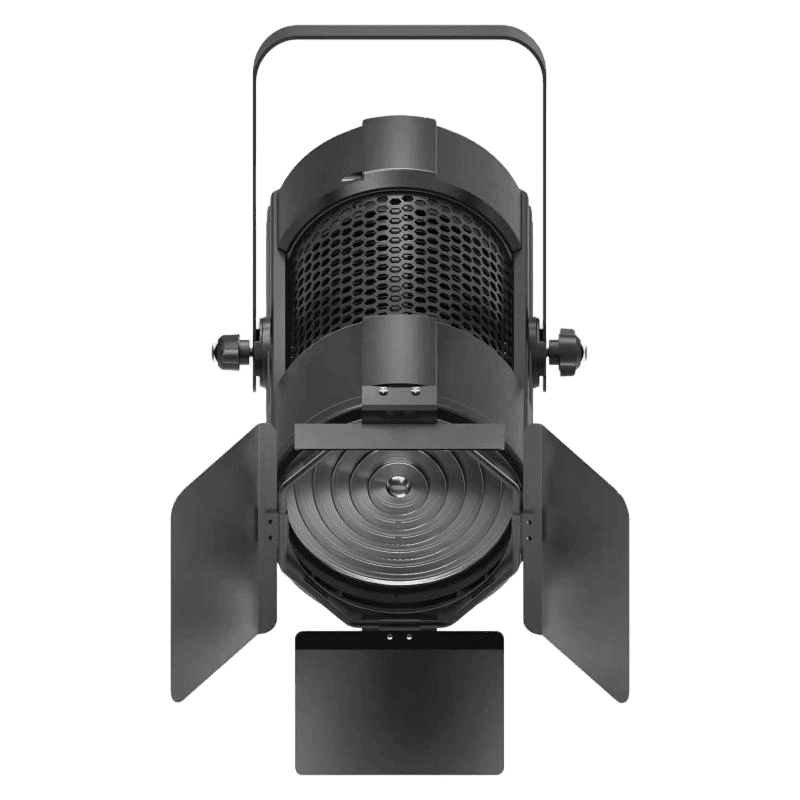

100 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Features
Flexible color temperature options include 3200K (warm white tungsten), 5600K (cool white daylight), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
Quiet cooling is achieved through an intelligent temperature-controlled low-noise fan (≤30 dB). The die-cast aluminum body provides high heat dissipation efficiency, extending the light source lifespan to ≥50,000 hours. Manual or motorized zoom options are available (typically 15°–60°).
Energy-efficient and durable, it saves over 70% energy compared to traditional halogen tungsten lights and eliminates frequent bulb replacement, reducing operational costs.
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | 120W RGBW Quad-Chip LED Module |
| Input Voltage | AC 100~240V, 50/60Hz |
| Rated Power | 100W |
| Source Lifetime | ≥50,000 hours |
| Color System | RGBW color mixing system with rainbow effect |
| Effect Configuration | 0–100% linear dimming, 4 selectable dimming curves and 4 dimming frequencies |
| Fast Strobe | 1-25Hz |
| Color Temperature | 2500K-10000K linear adjustment |
| Channel Mode | 3CH / 4CH / 6CH |
| Control Panel | TFT screen + two rotary encoders |
| Optics | Manual zoom (15-35 degrees), 24-bit flicker-free light source management system, anti-glare design |
| Cooling System | Fanless passive cooling via air convection |
| Thermal Monitoring | Built-in temperature protection sensor with automatic power regulation for over-temperature protection; real-time operating temperature displayed on the panel |
| Control Modes | DMX / RDM / Manual Control |
| IP Rating | IP20 |
| Accessories | Barn doors, power cable, signal cable |
| Net Weight | 4 kg |
| Gross Weight | 5.3 kg |
| Product Dimensions | 430 x 230 x 265 mm |
| Packaging Dimensions | 480 x 293 x 270 mm |

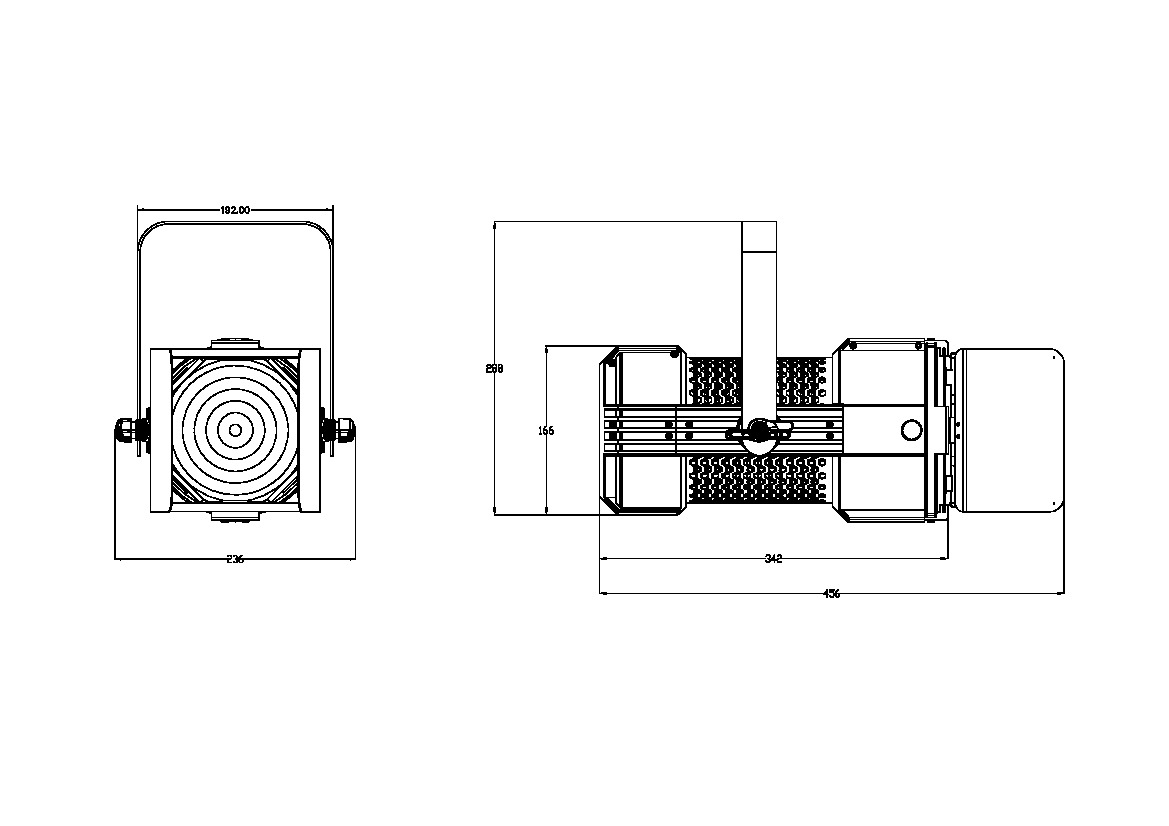

Dimensions
Applications
Ideal for various applications:
⦁ Film/web series sets: key light, fill light, rim light, and uniform lighting for large scenes.
⦁ TV studio stages: presenter key light, interview area lighting, virtual background illumination.
⦁ High-definition live streaming rooms and multimedia convergence centers.
⦁ Stage lighting.
300 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
100W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props. The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Flexible color temperature options include 3200K (warm white tungsten), 5600K (cool white daylight), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
200 W RGBW LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
200W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
