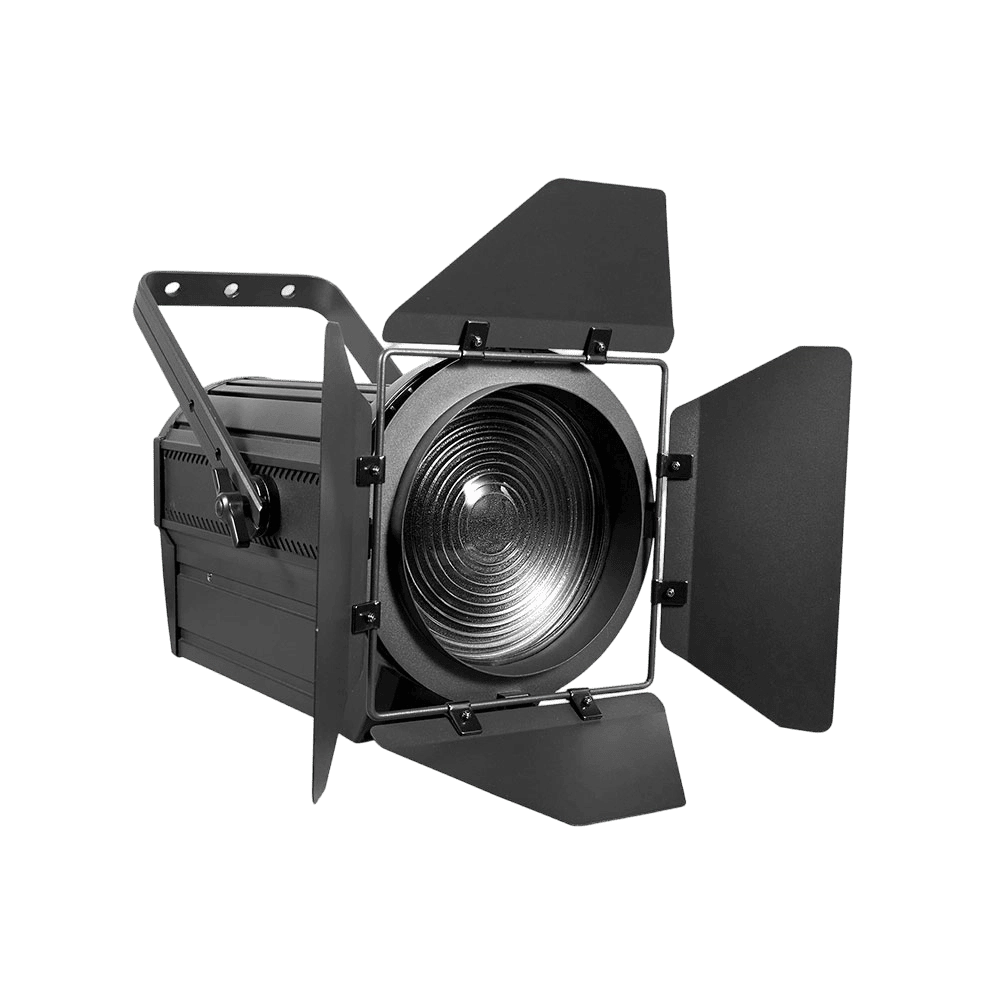

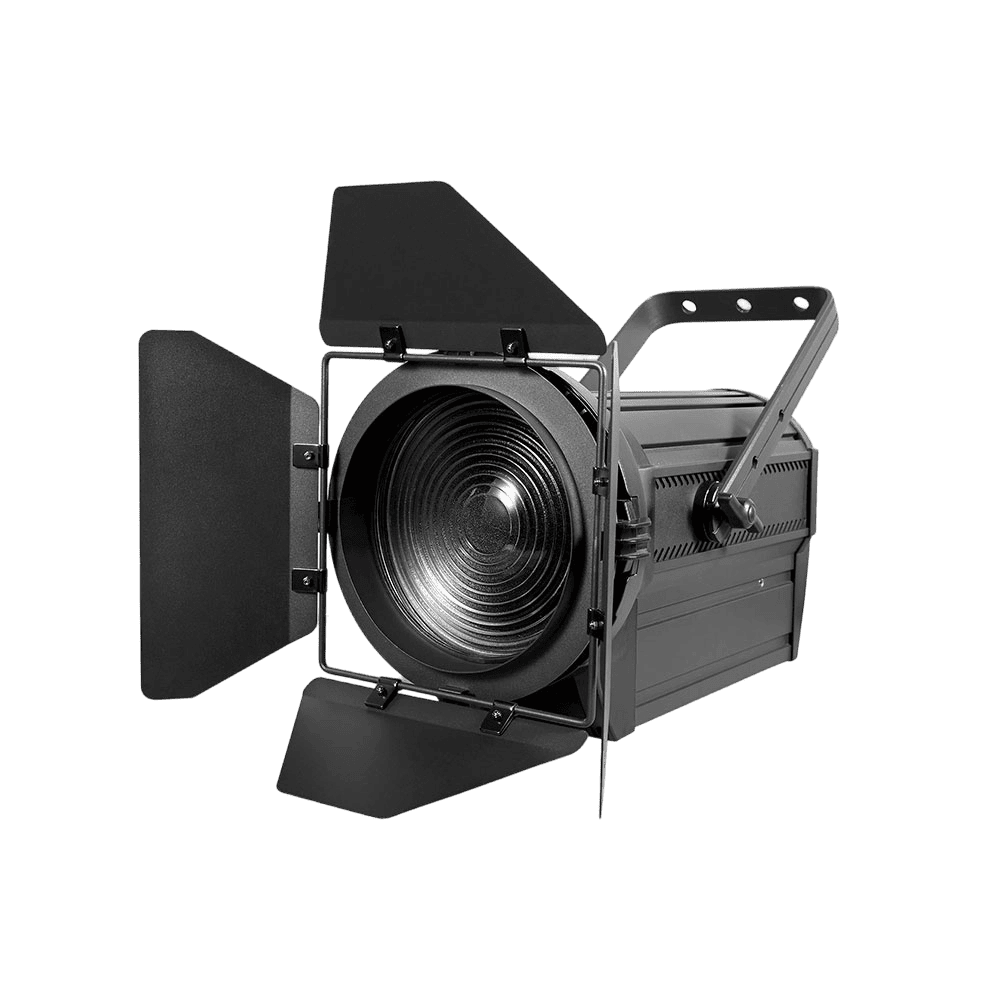

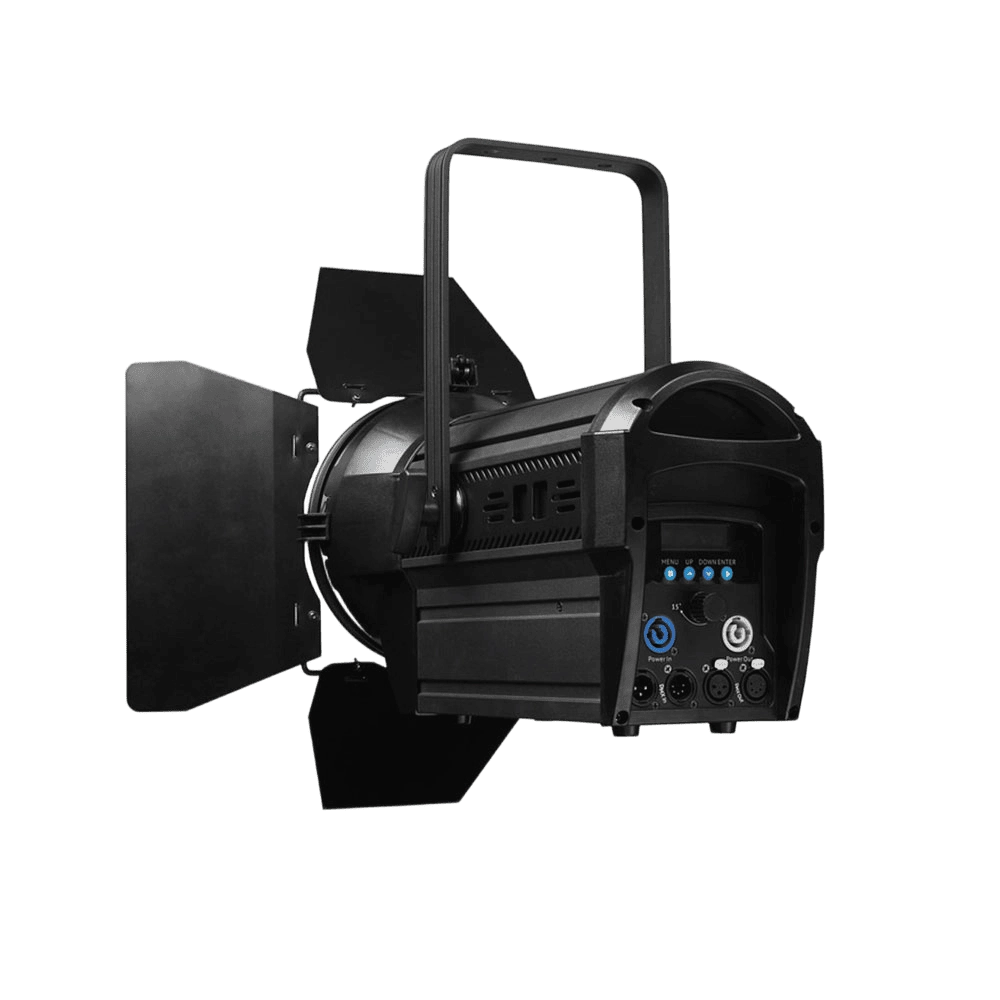

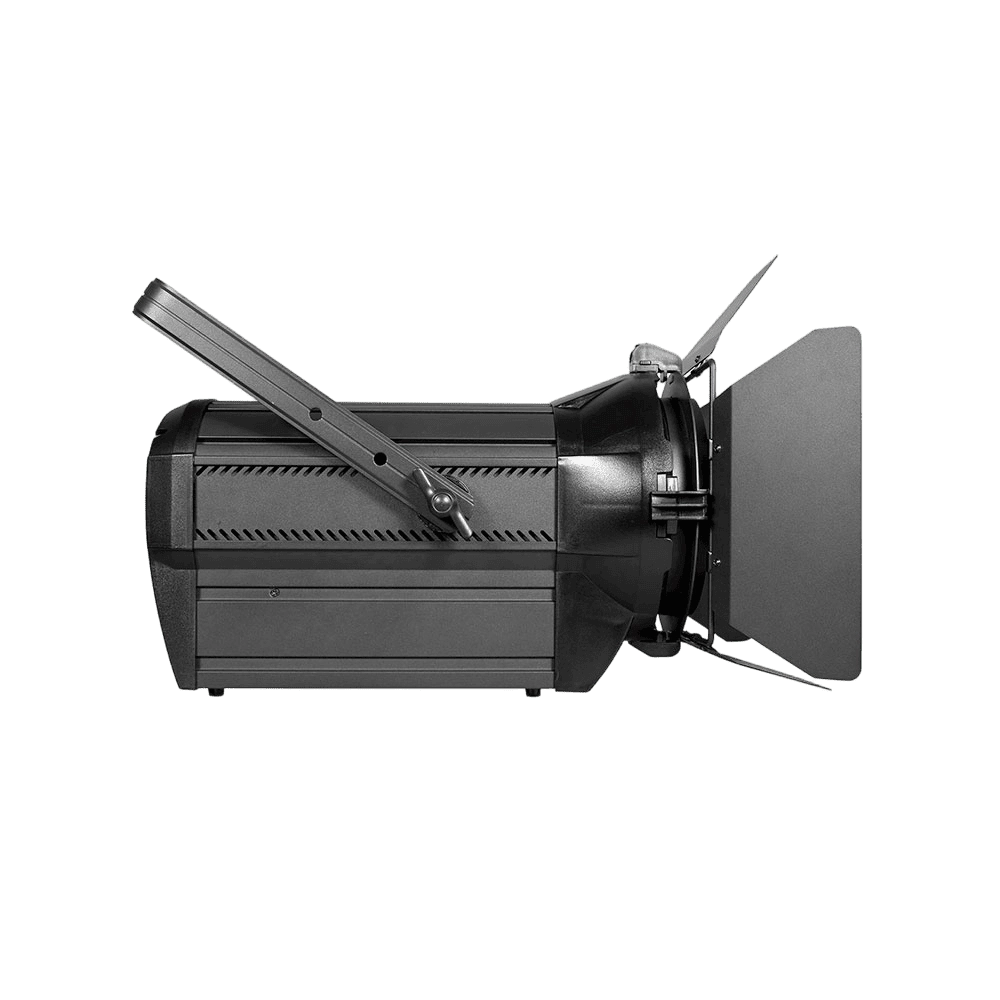

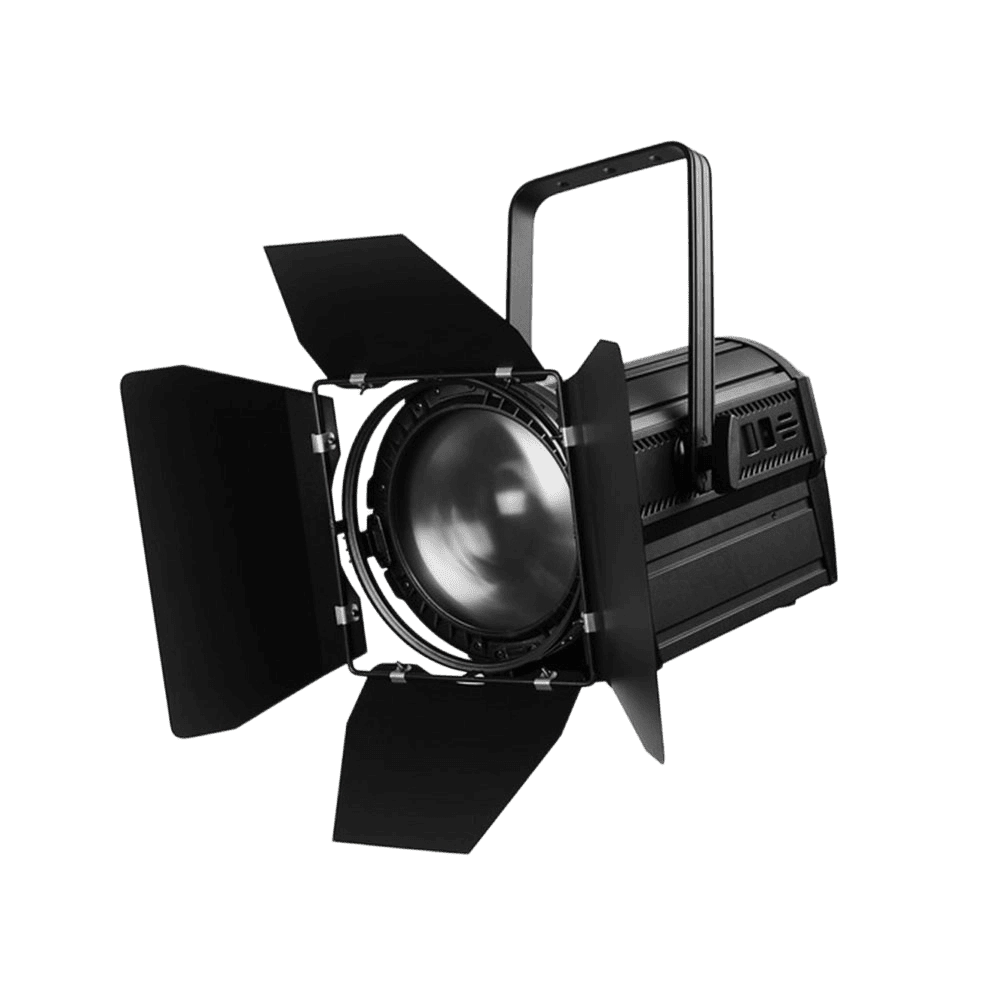

200W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props.

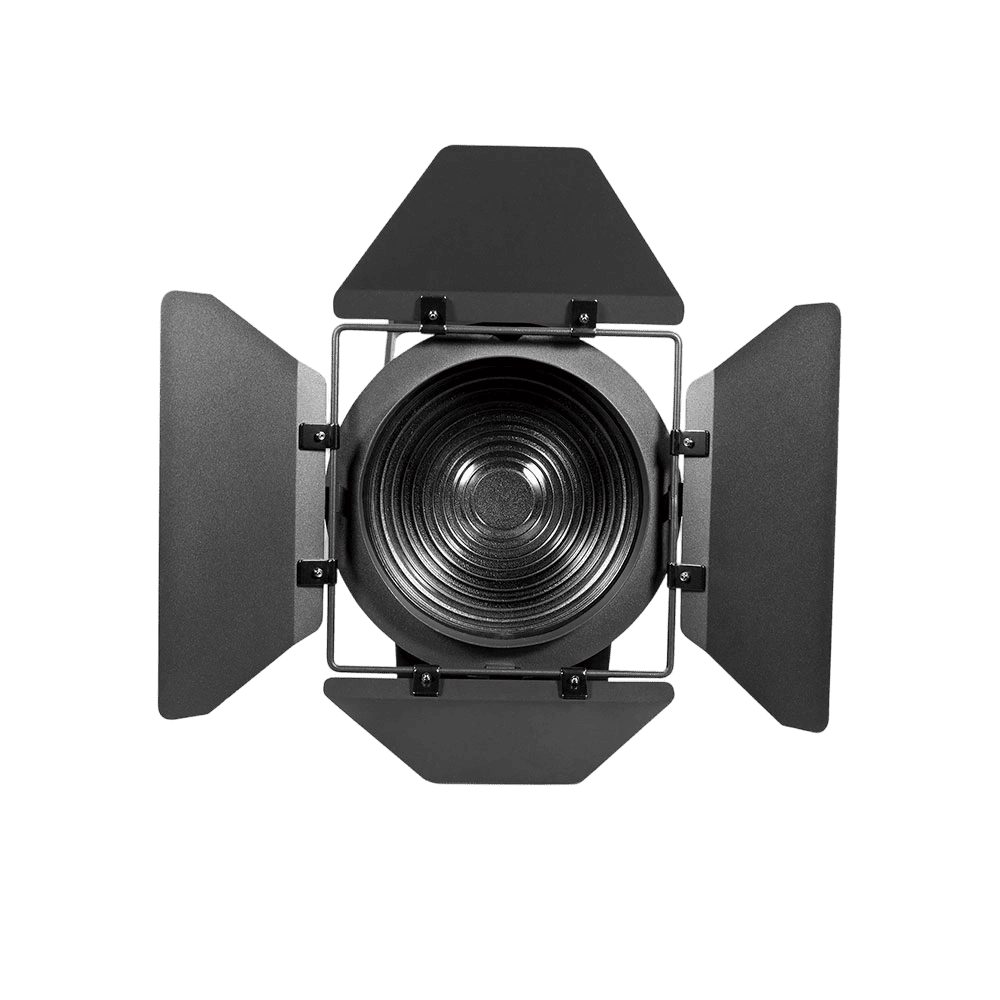

The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Features
Flexible color temperature options include 3200K (tungsten warm white), 5600K (daylight cool white), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
Quiet cooling is achieved through an intelligent temperature-controlled low-noise fan (≤30 dB). The die-cast aluminum body provides high heat dissipation efficiency, extending the light source lifespan to ≥50,000 hours. Manual or motorized zoom options are available (typically 15°–60°).
Energy-efficient and durable, it saves over 70% energy compared to traditional halogen tungsten lights and eliminates frequent bulb replacement, reducing operational costs.
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | 200W High CRI LED COB |
| Power Supply Voltage | AC100~240V, 50/60Hz |
| Rated Power | 200W |
| Light Source Lifespan | ≥50,000 hours |
| Color Rendering Index | Ra (CRI) ≥95, R9 ≥90, TLCI ≥95 |
| Color Temperature | Adjustable 3200K–5600K |
| Dimming | 0–100% linear dimming, flicker-free, jitter-free, and seamless transition for smooth dimming and color temperature adjustment |
| Channel Mode | 2CH / 3CH |

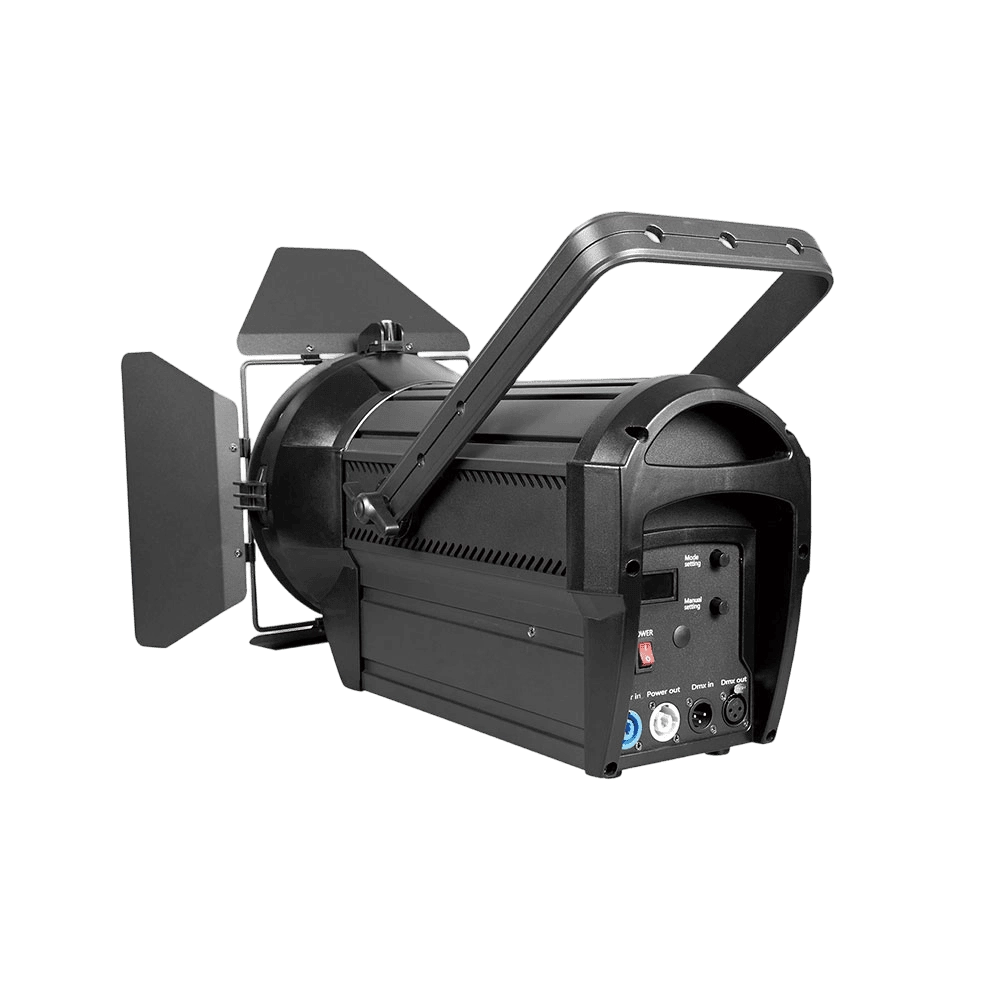

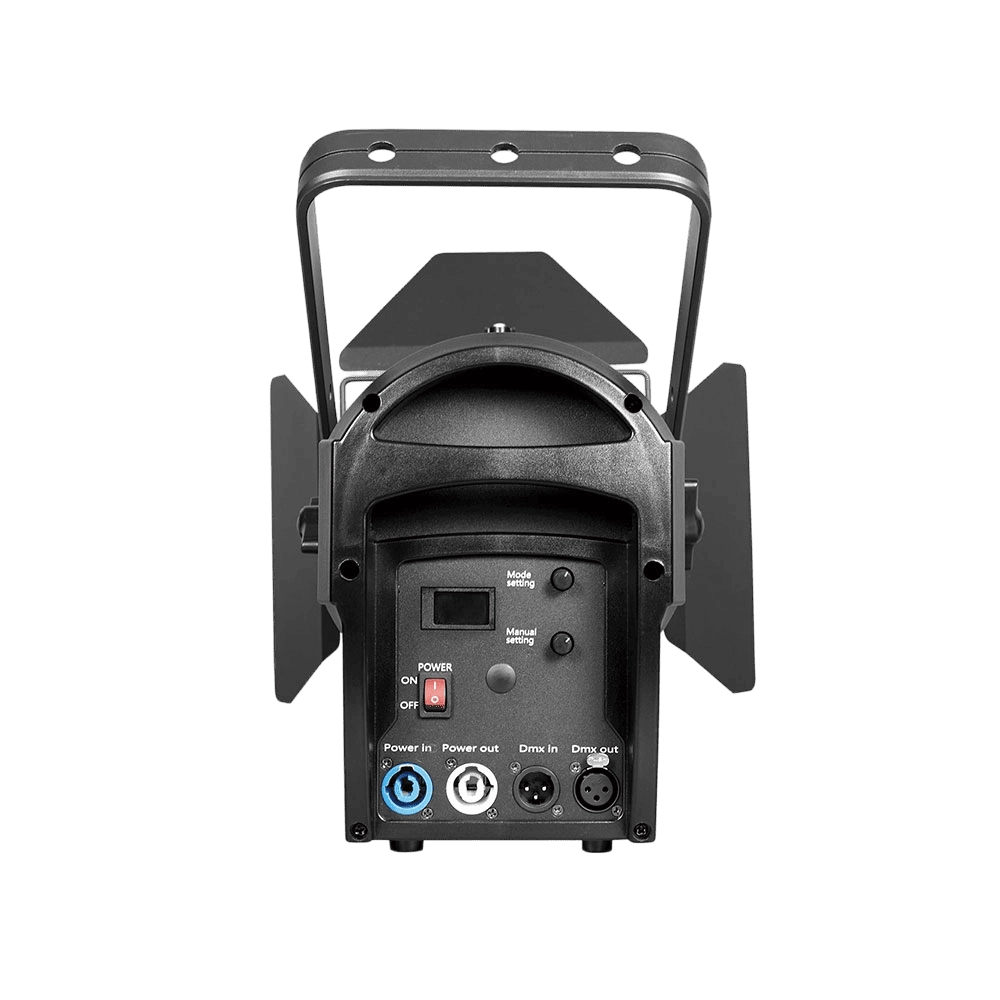

| Control Panel | LCD color display + two knobs |
| Optics | Manual zoom 15°–60° / motorized zoom optional, 24K flicker-free light management system, anti-glare design |
| Cooling System | Copper heat pipe radiator + silent fan |
| Temperature Monitoring | Built-in temperature protection sensor, automatic power adjustment for over-temperature protection, real-time temperature display on panel |
| Control Mode | DMX / manual control / RDM |
| Protection Rating | IP20 |
| Accessories | Barn doors, power cable, signal cable |
| Net Weight | 7.2 kg |
| Gross Weight | 8.8 kg |
| Fixture Dimensions | 510 × 260 × 300 mm |
| Packaging Dimensions | 560 × 350 × 365 mm |

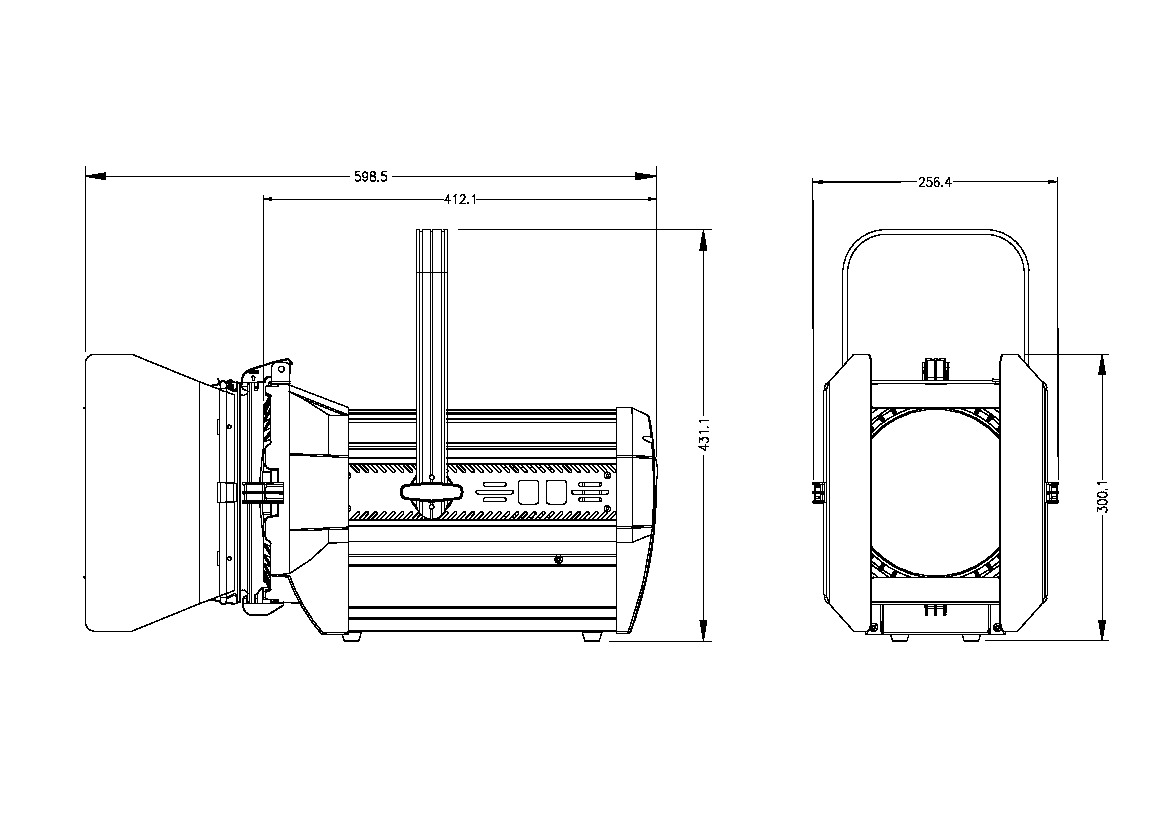

Dimensions
Applications
Ideal for various applications:
⦁ Film/web series sets: key light, fill light, rim light, and uniform lighting for large scenes.
⦁ TV studio stages: presenter key light, interview area lighting, virtual background illumination.
⦁ High-definition live streaming rooms and multimedia convergence centers.
⦁ Stage lighting.
