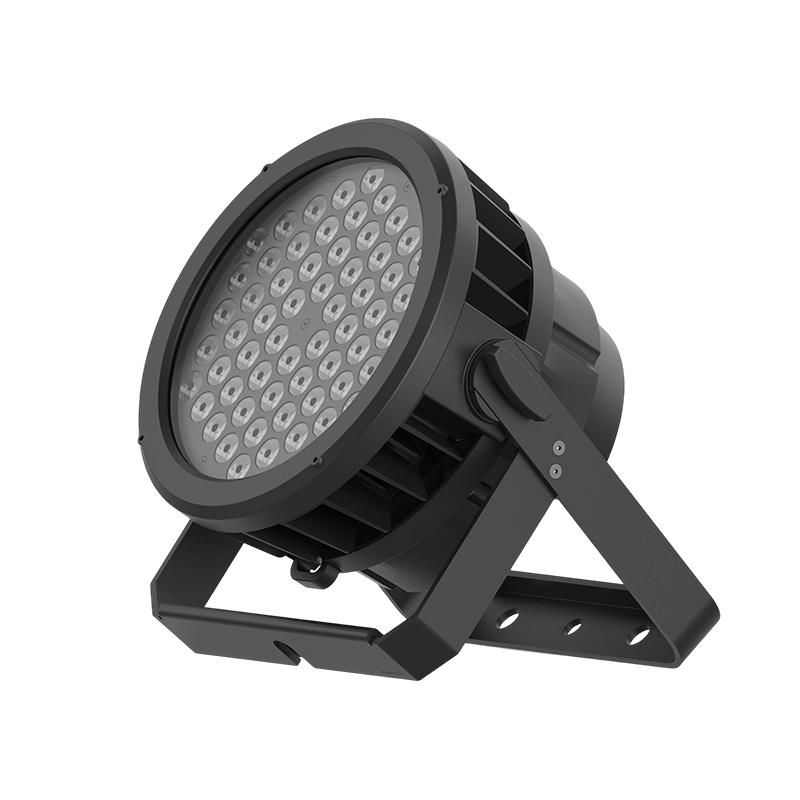

Waterproof 54 * 3W RGBW IP 67 par light
An LED PAR light is a core color wash lighting device for stage performances, venue atmosphere, and event celebrations. Featuring high-brightness RGBW 4-in-1 or RGBWA 5-in-1 LEDs paired with high-quality PMMA optical lenses, it achieves 16.7 million full-color, stepless color mixing, delivering a uniform beam without color fringing and with smooth edge transitions.
It supports 0-100% 16-bit linear flicker-free dimming and DMX512/RDM remote control, while also offering sound activation, master/slave synchronization, and built-in auto programs for one-touch dynamic effects such as rainbow fades and strobe pulses.
Features
Free from harmful UV/IR radiation, it features a die-cast aluminum housing with an efficient silent cooling system. The light source boasts a lifespan of ≥50,000 hours and achieves energy savings of over 70% compared to traditional color wash lights, resulting in extremely low operational and maintenance costs. Beam angle options include fixed-focus models of 15°/25°/45°/60° and a 6-40° zoom model, catering to close-range localized color washing and long-distance large-area coverage.
Technical Specifications
| Specification | Details |
|---|---|
| Power Supply Voltage | AC100~240V, 50/60Hz |
| Rated Power | 200 W, Power Factor (PF) > 0.95 |
| Light Source | LED Configuration: 54 pcs of 3W RGBW LEDs (R: 12, G: 14, B: 14, W: 14) 14) Source Lifetime: 50,000 hours |
| Beam Angle | Selectable 20-45 degrees |
| Effect Configuration |
- 0–100% independent linear dimming for each color - 0–100% independent saturation adjustment - 3200K–10000 K linear color temperature adjustment - Independent high-speed strobe - Color macros and color fade effects |
| Control Panel | Digital display with four-button keypad |
| Control Channels | Two selectable modes: 6CH / 8CH / 9CH |
| Protocol | Standard DMX512 protocol: Master/Slave control mode |
| Menu Display | LED display |
| Housing Construction | Die-cast aluminum alloy |
| Electronic Control Technology |
- Fixture reset via menu or console control - 0–100% dimming control - Constant power control - Temperature sensor detection for intelligent light source power adjustment - DMX channel level monitoring - DMX signal indicator - Fixture information query - Individual color starting brightness setting - Over-current, over-voltage, and over-temperature protection |
| Ingress Protection (IP) Rating | IP67 |
| Cooling Method | Natural convection cooling via cast aluminum housing |
| Noise Level | Silent operation (no fan) |
| Control Modes | DMX512 control / Manual mode |
| Operating Temperature | -25℃ ~ +45℃ |
| Included Accessories | Power cable, DMX signal cable |
| Net Weight | 5.13 kg |
| Fixture Dimensions | 282 × 240 × 260 mm |

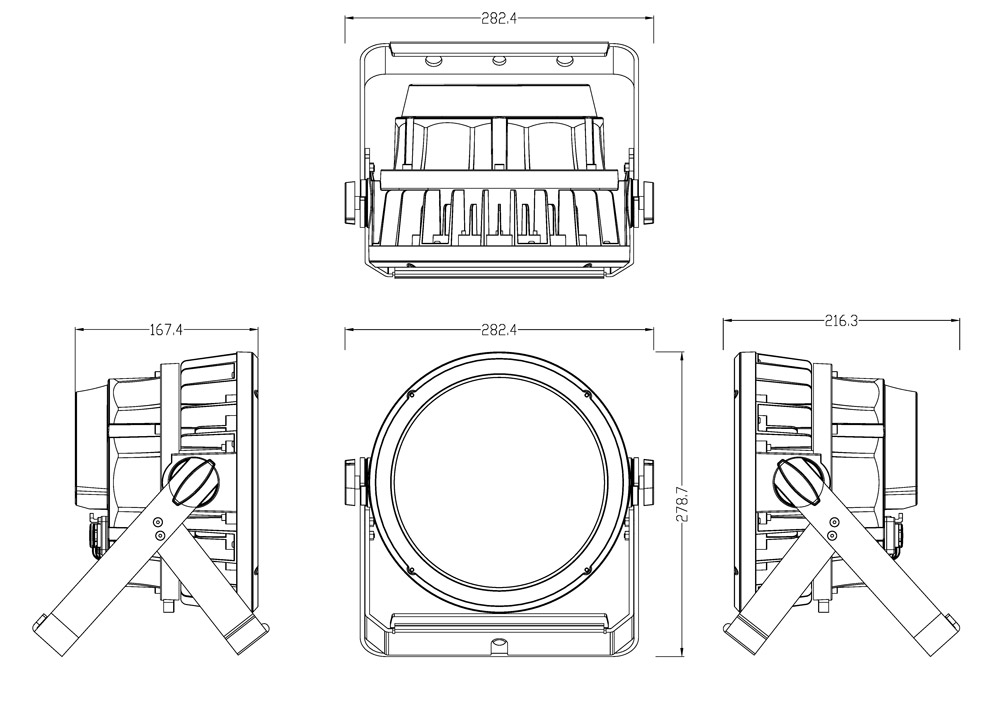

Dimensions
Applications
⦁ Stage Performances/Concerts: Backdrop color washing, side/top light layering, audience area atmosphere lighting.
⦁ Bars/Night Tours: Wall/architectural contour color washing, dynamic lighting shows.
⦁ Convention Centers/Brand Stores: Exhibition booth product atmosphere, lighting, and window display color illumination.
⦁ Stadiums/Theaters: Large-scale color rendering for opening acts and curtain calls.
