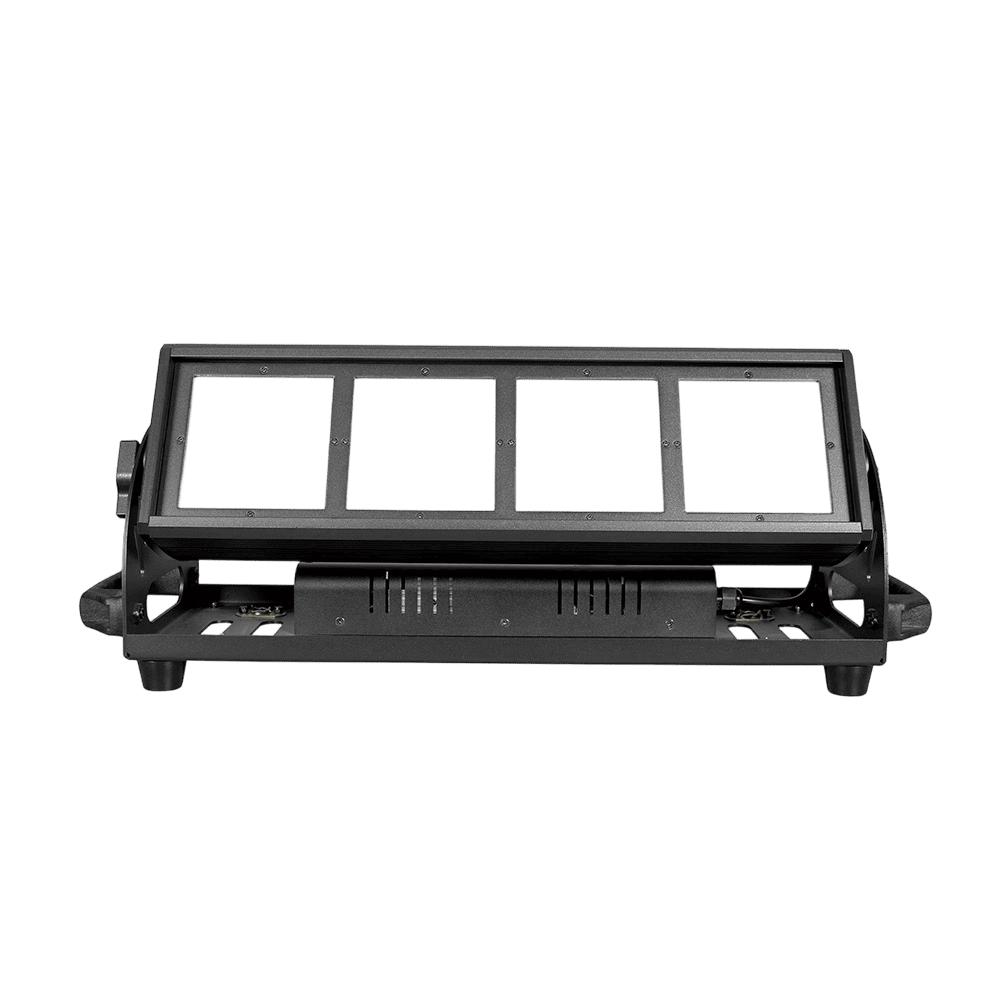

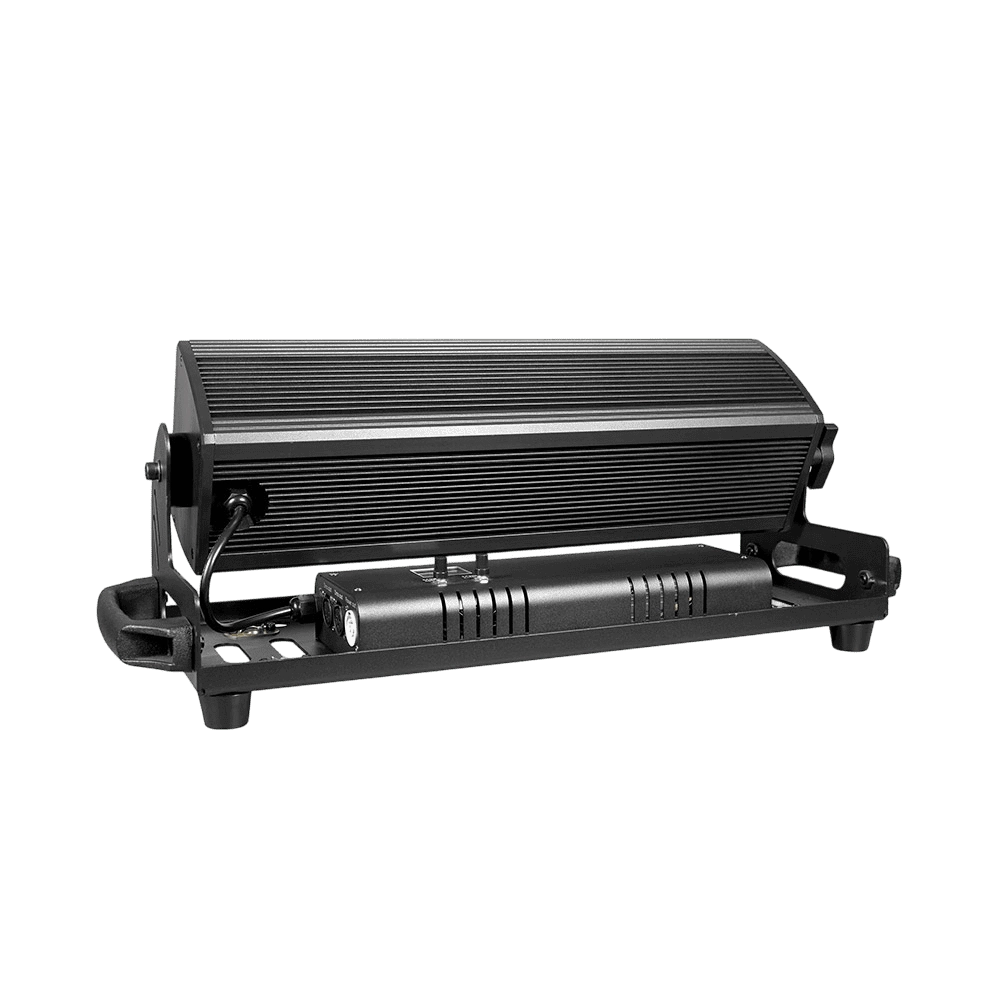

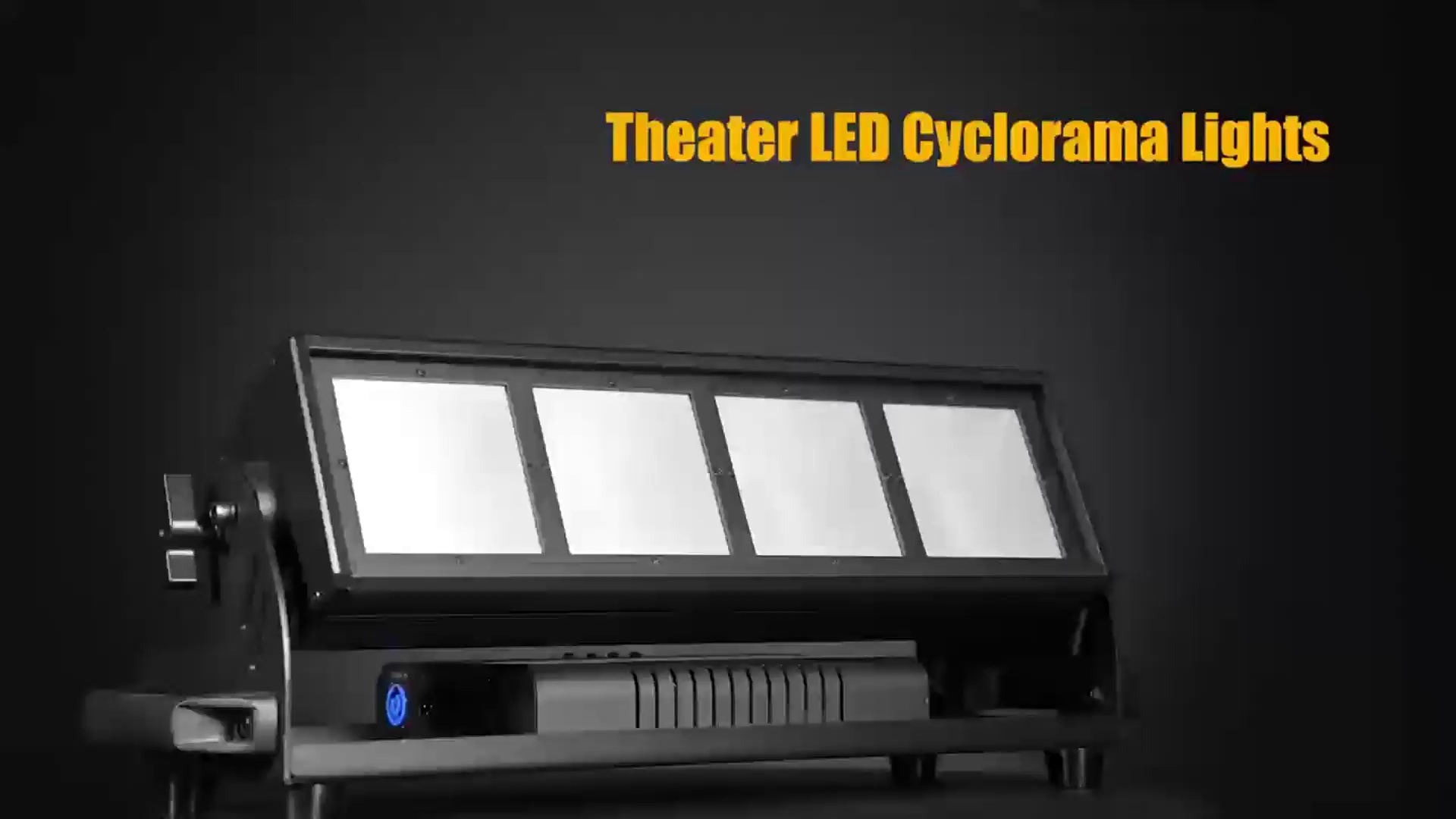

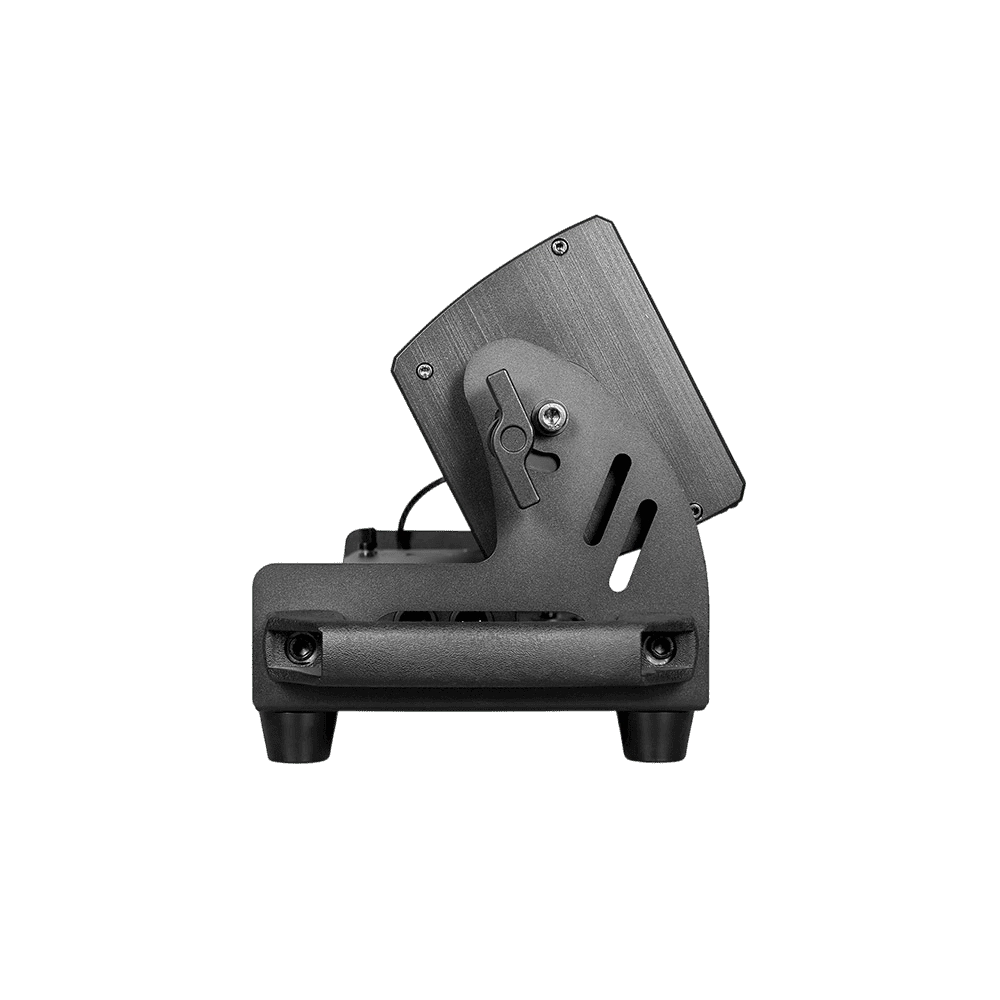

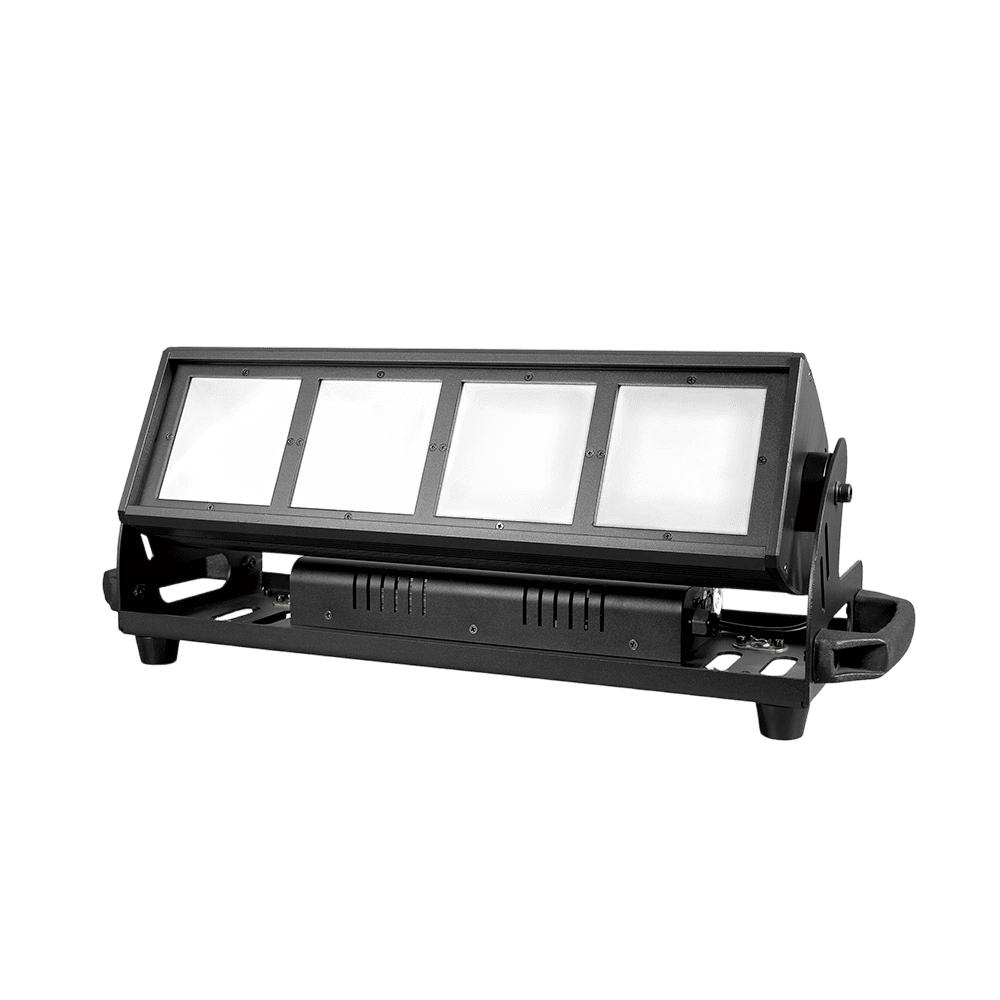

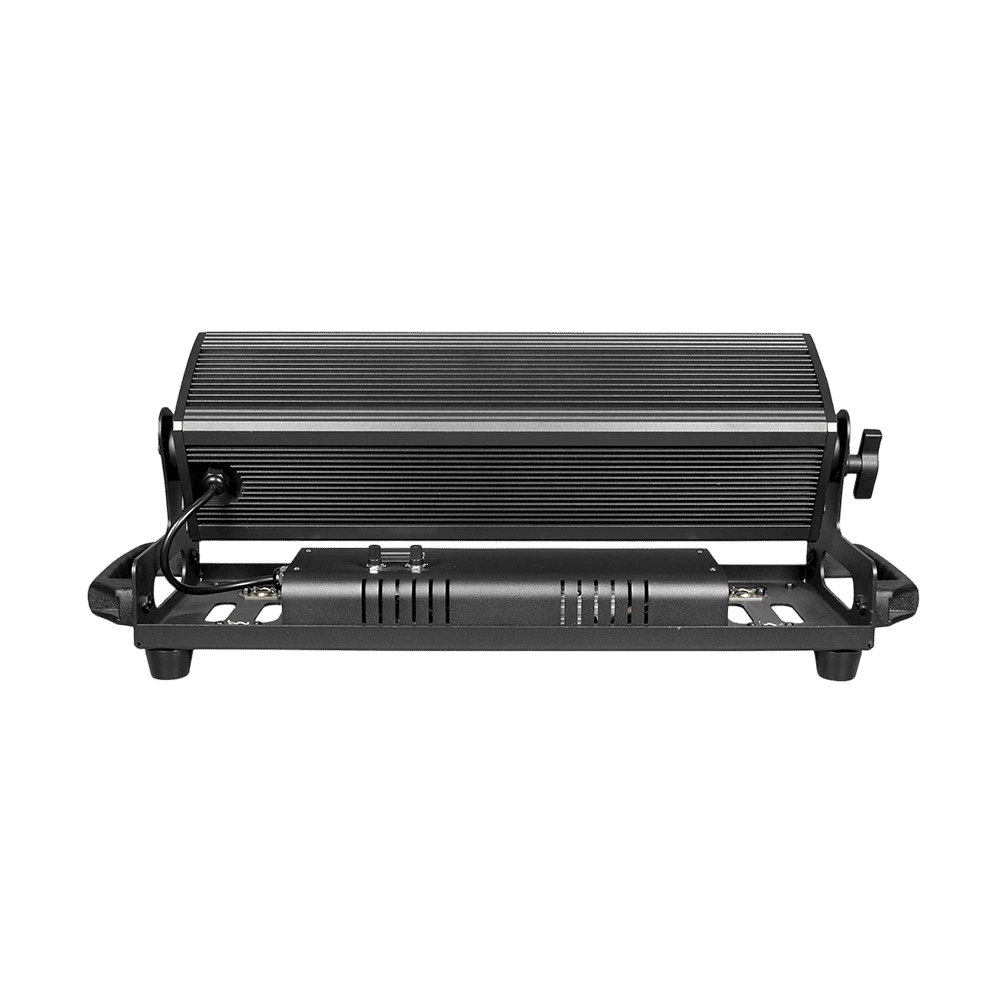

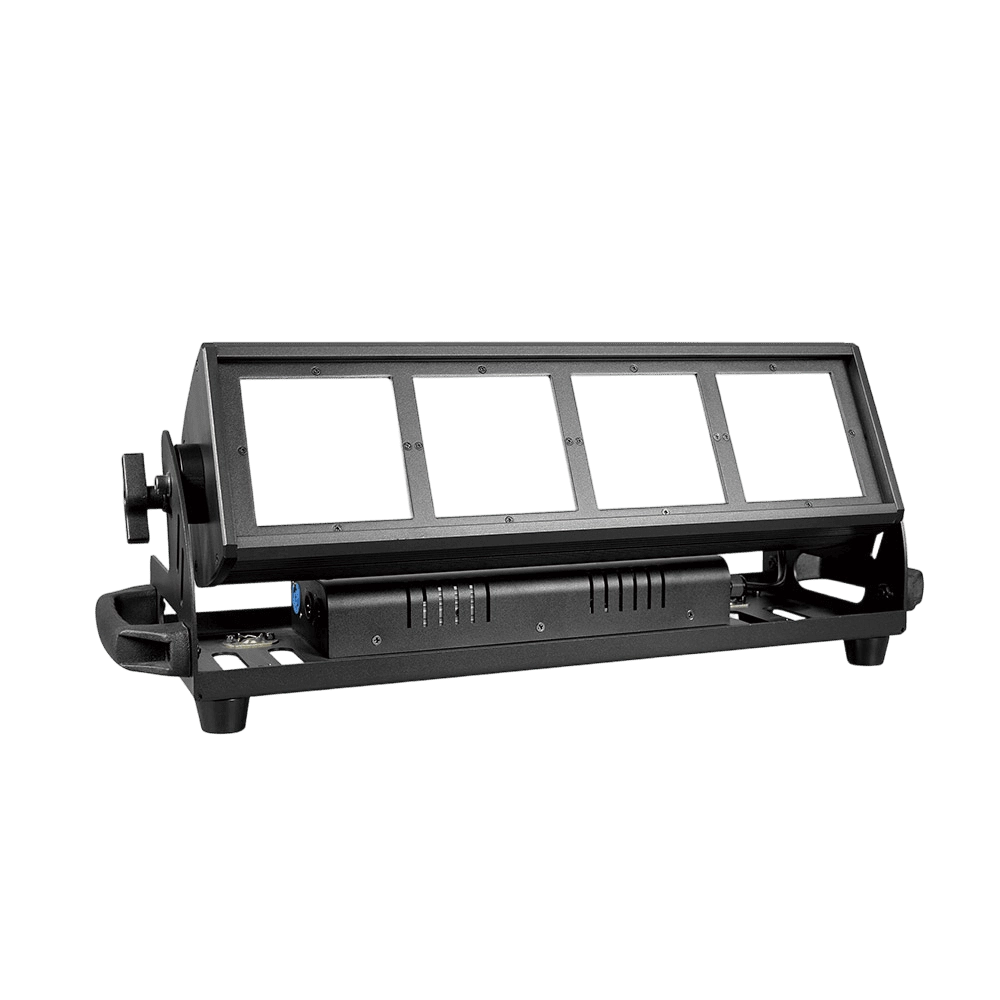

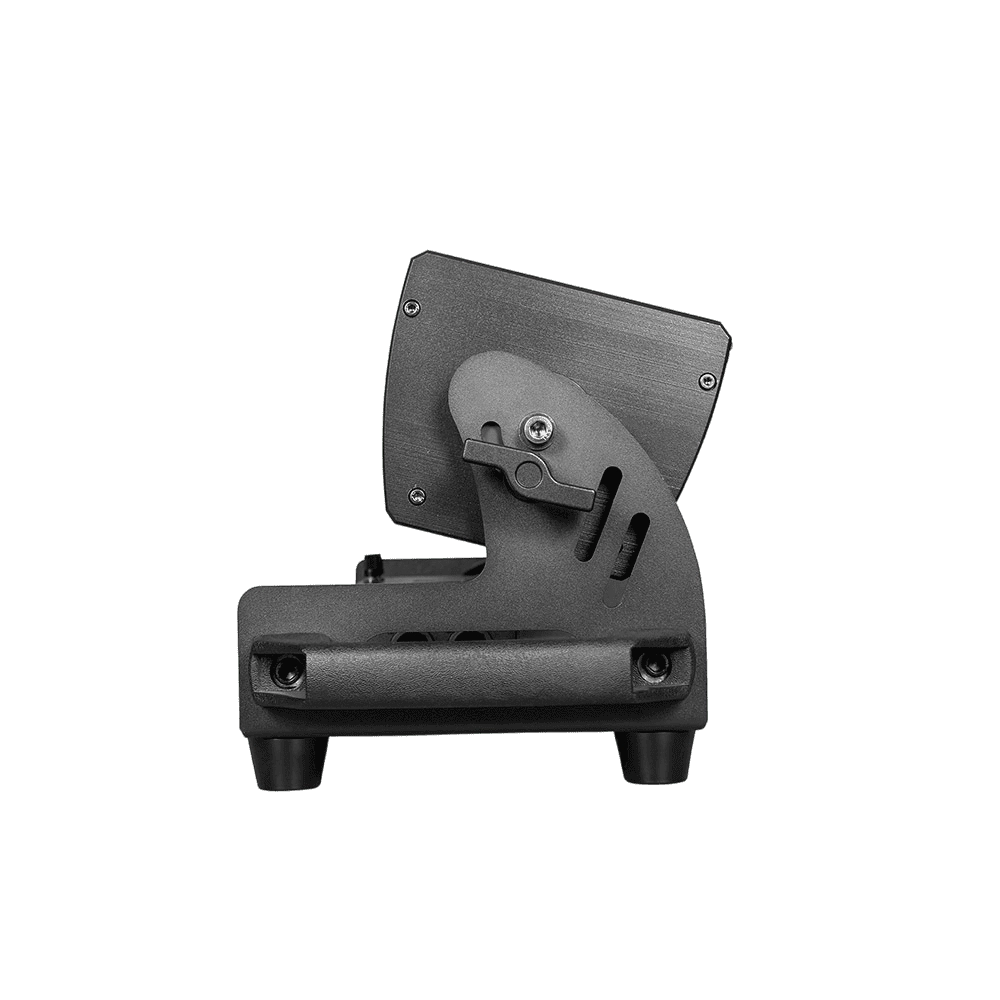

Single row 7-color 200W linear color mixing Theater LED Cyclorama Lights
An LED cyc light (also known as a skylight/background wash light) is the core background lighting equipment for theaters, studios, and large event venues, specifically designed to provide uniform, shadow-free, large-area illumination for cycloramas, backdrops, and stage floors. Featuring high-density array LED beads paired with professional diffusion optical lenses and a five-color or seven-color full-color mixing system, it achieves 16.7 million colors with stepless, nuanced color transitions.
The light beam is soft, even, and free of any noticeable boundaries, perfectly recreating natural atmospheres such as clear blue skies, sunset reds, and starry nights. With a high Color Rendering Index (CRI ≥ 95), it delivers true-to-life, detailed color reproduction without harmful UV/IR radiation.
Features
Extensive Coverage: With a single fixture achieving a beam angle of up to 120°, multiple units can be tiled seamlessly without dark areas, easily covering dozens of square meters of cyclorama or stage floor to meet the overall wash lighting requirements of large venues.
Precision Control & Dynamic Effects: It supports 0-100% 16-bit linear flicker-free dimming and is compatible with DMX512/RDM protocols for remote synchronized control. Built-in sound activation, master/slave, and auto programs allow for one-touch dynamic effects such as fades, jumps, and strobes, adapting perfectly to the rhythm of performances.
Durability & Energy Efficiency: Constructed with an integrally molded die-cast aluminum housing and equipped with an efficient, silent cooling system (≤30 dB), the light source boasts a lifespan of ≥50,000 hours. Compared to traditional halogen cycle lights, it achieves energy savings of over 80%, significantly reducing operational and maintenance costs.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | AC 100–240V, 50/60Hz |
| Power Rating | 200W, Power Factor: PF > 0.98 |
| Light Source | Imported LUMILEDS 7-color LEDs: Red ×24, Green ×16, Blue ×12, Royal Blue ×8, Cyan ×8, Amber ×12, Lemon Green ×20 |
| Luminous Source Lifespan | 50,000 hours |
| Color Temperature | 2,700K–10,000K full-spectrum adjustable |
| Color Rendering Index (CRI) | Ra ≥ 95 |
| Beam Angle | Wedge-style reflector, 45° × 60° |
| Color System | 7-color linear LED mixing, 16.7 million colors, built-in macro effects |
| Control Protocol | DMX512 standard, DMX control / Manual mode |
| Dimming | Theatrical 0–100% linear dimming |
| Color Mixing System | HSIC (Hue, Saturation, Intensity, Color Temperature) |
| Control Panel | LCD display + four-button interface |
| Channel Modes | 7CH / 9CH / 11CH / 14CH / 17CH / 22CH |
| Ingress Protection (IP) | IP20 |
| Operating Temperature Range | –25°C to +35°C |
| Accessories Included | Power cable, DMX signal cable |
| Net Weight | 7 kg |
| Fixture Dimensions | 650 × 250 × 250 mm |

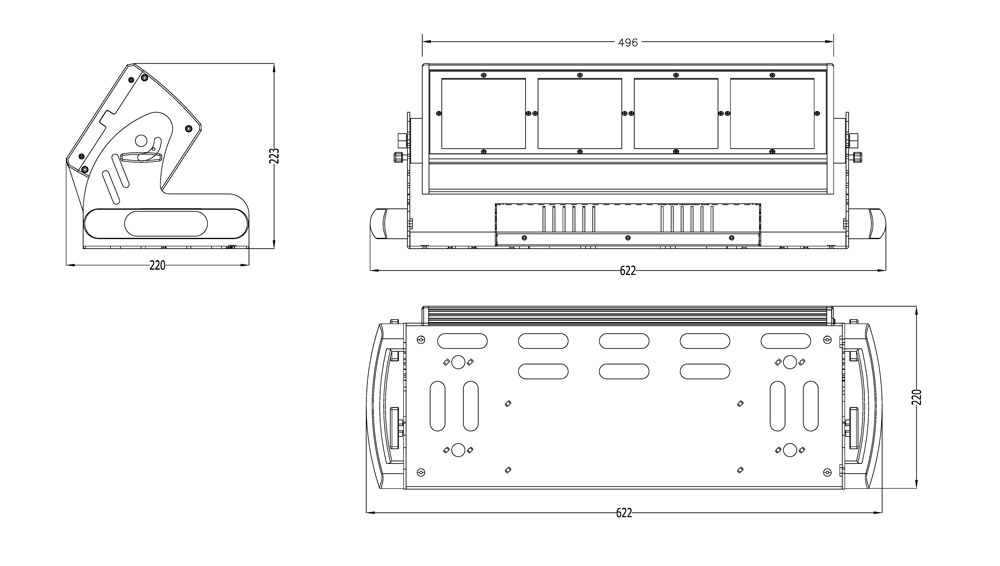

Dimensions
Applications

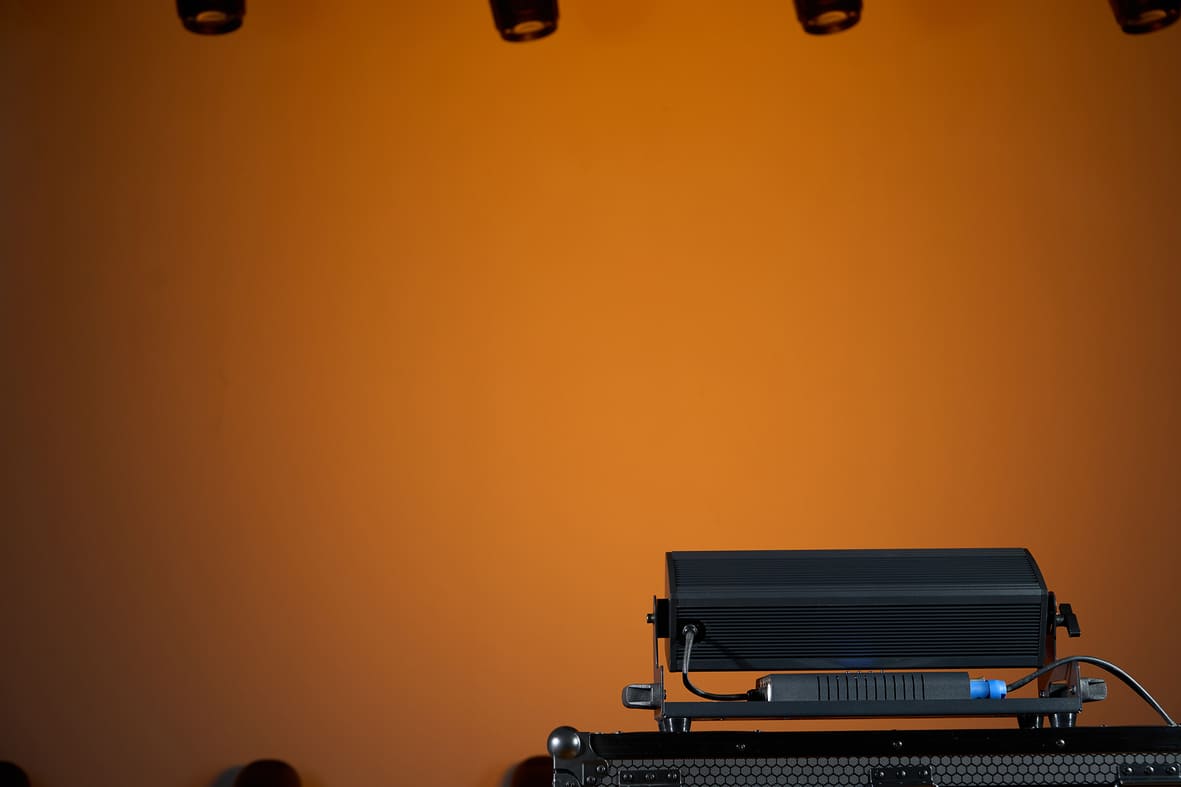

⦁ Professional Theaters/Opera Houses: Ideal for cyclorama background washes and stage floor color washing, enabling the creation of atmospheric scenes such as sunrises, starry skies, and nightscapes.
⦁ TV Studios: Provides uniform background illumination for virtual studio cycloramas and interview set backdrops, significantly enhancing on-screen image quality.
⦁ Live Events/Concerts: Used for rendering stage backdrop curtains and providing atmospheric audience blinder/wash effects, seamlessly transitioning colors to align with the theme of the performance.
Single row 5-color (RGBAL) 200W linear color mixing Theater LED Cyclorama Lights
An LED cyc light (also known as a skylight/background wash light) is the core background lighting equipment for theaters, studios, and large event venues, specifically designed to provide uniform, shadow-free, large-area illumination for cycloramas, backdrops, and stage floors. Featuring high-density array LED beads paired with professional diffusion optical lenses and a five-color or seven-color full-color mixing system, it achieves 16.7 million colors with stepless, nuanced color transitions.
The light beam is soft, even, and free of any noticeable boundaries, perfectly recreating natural atmospheres such as clear blue skies, sunset reds, and starry nights. With a high Color Rendering Index (CRI ≥ 95), it delivers true-to-life, detailed color reproduction without harmful UV/IR radiation.

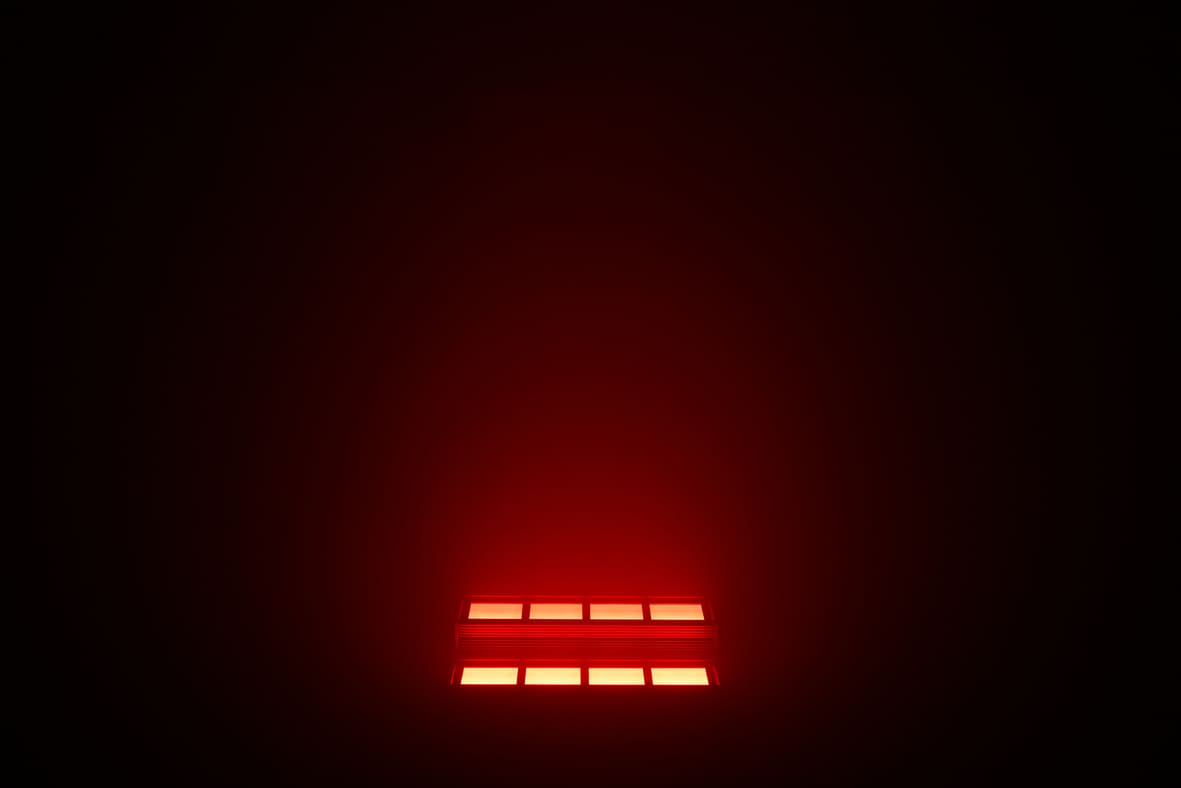

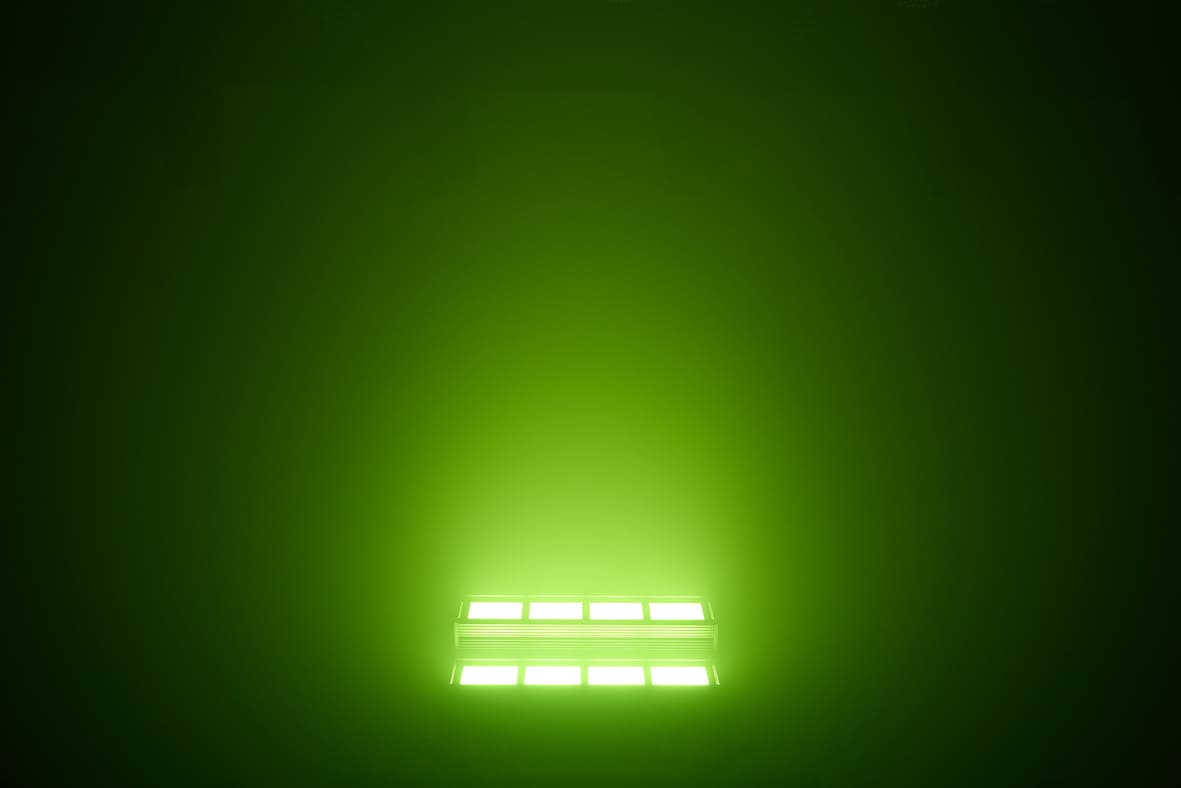

400W Double row 7 -colors 400W Theater LED Cyclorama Lights
An LED cyc light (also known as a skylight/background wash light) is the core background lighting equipment for theaters, studios, and large event venues, specifically designed to provide uniform, shadow-free, large-area illumination for cycloramas, backdrops, and stage floors. Featuring high-density array LED beads paired with professional diffusion optical lenses and a five-color or seven-color full-color mixing system, it achieves 16.7 million colors with stepless, nuanced color transitions.
The light beam is soft, even, and free of any noticeable boundaries, perfectly recreating natural atmospheres such as clear blue skies, sunset reds, and starry nights. With a high Color Rendering Index (CRI ≥ 95), it delivers true-to-life, detailed color reproduction without harmful UV/IR radiation.
Single row 2-color 200W adjustable CT 52pcs cool white 48pcs warm white 3W Theater LED Cyclorama Lights
An LED cyc light (also known as a skylight/background wash light) is the core background lighting equipment for theaters, studios, and large event venues, specifically designed to provide uniform, shadow-free, large-area illumination for cycloramas, backdrops, and stage floors. Featuring high-density array LED beads paired with professional diffusion optical lenses and a five-color or seven-color full-color mixing system, it achieves 16.7 million colors with stepless, nuanced color transitions.
The light beam is soft, even, and free of any noticeable boundaries, perfectly recreating natural atmospheres such as clear blue skies, sunset reds, and starry nights. With a high Color Rendering Index (CRI ≥ 95), it delivers true-to-life, detailed color reproduction without harmful UV/IR radiation.
300 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
