200W LED Soft Video Light for Studio

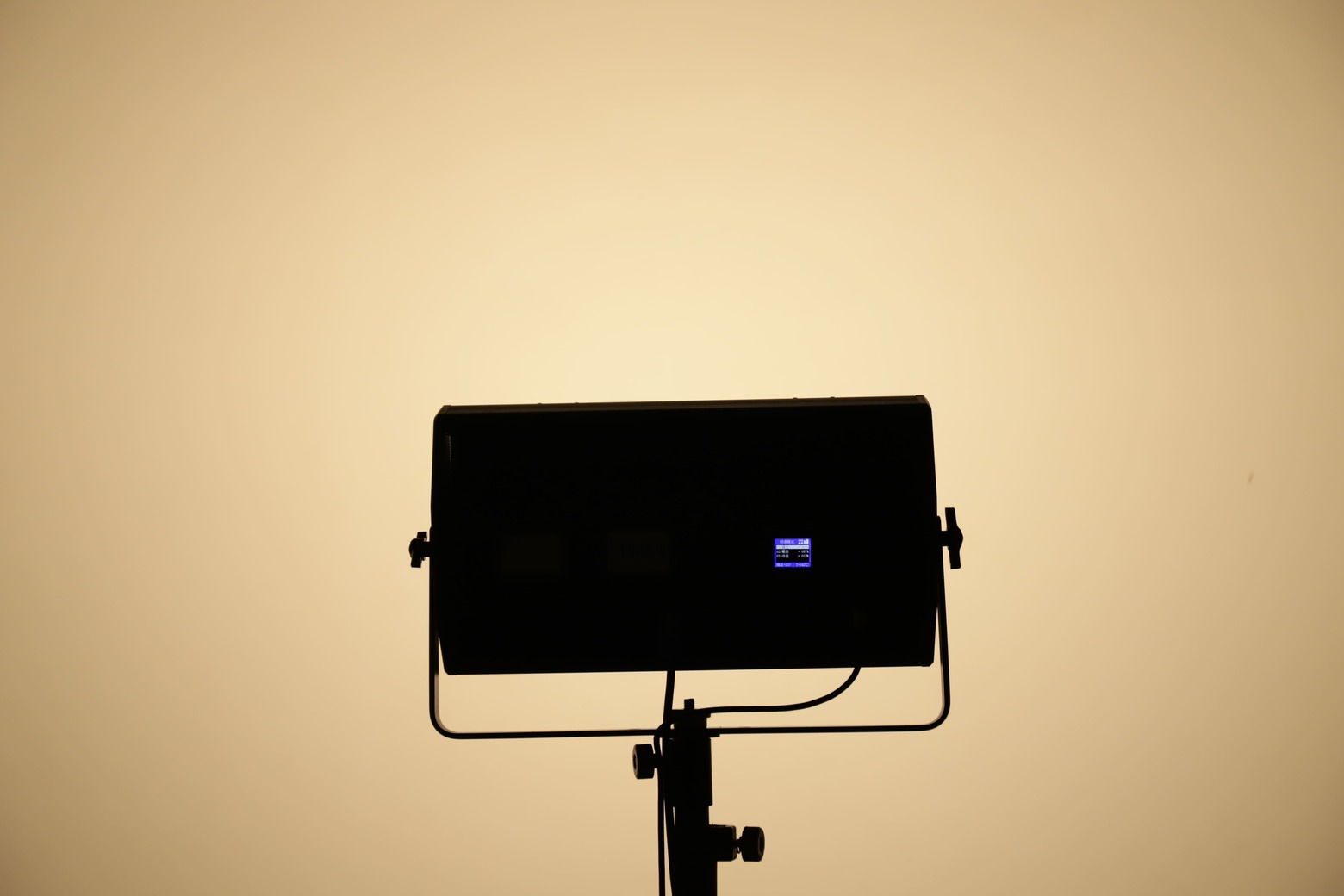

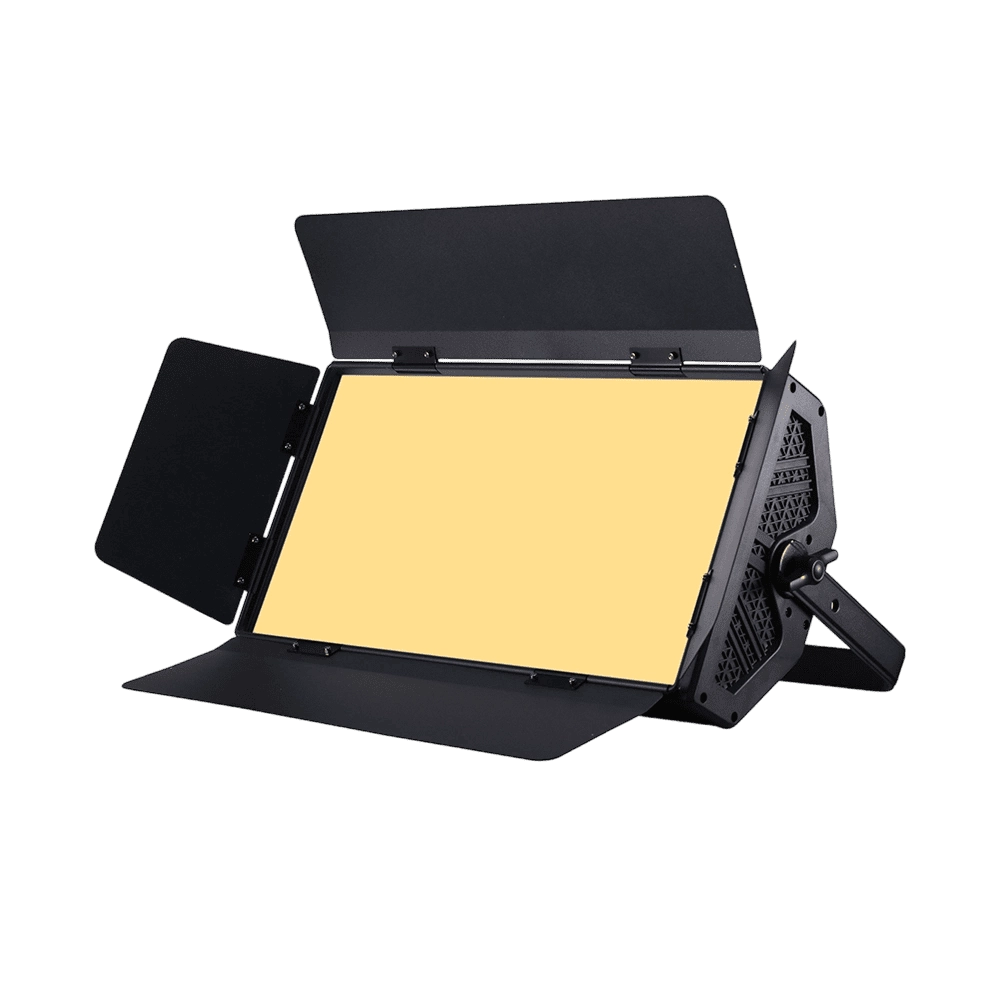

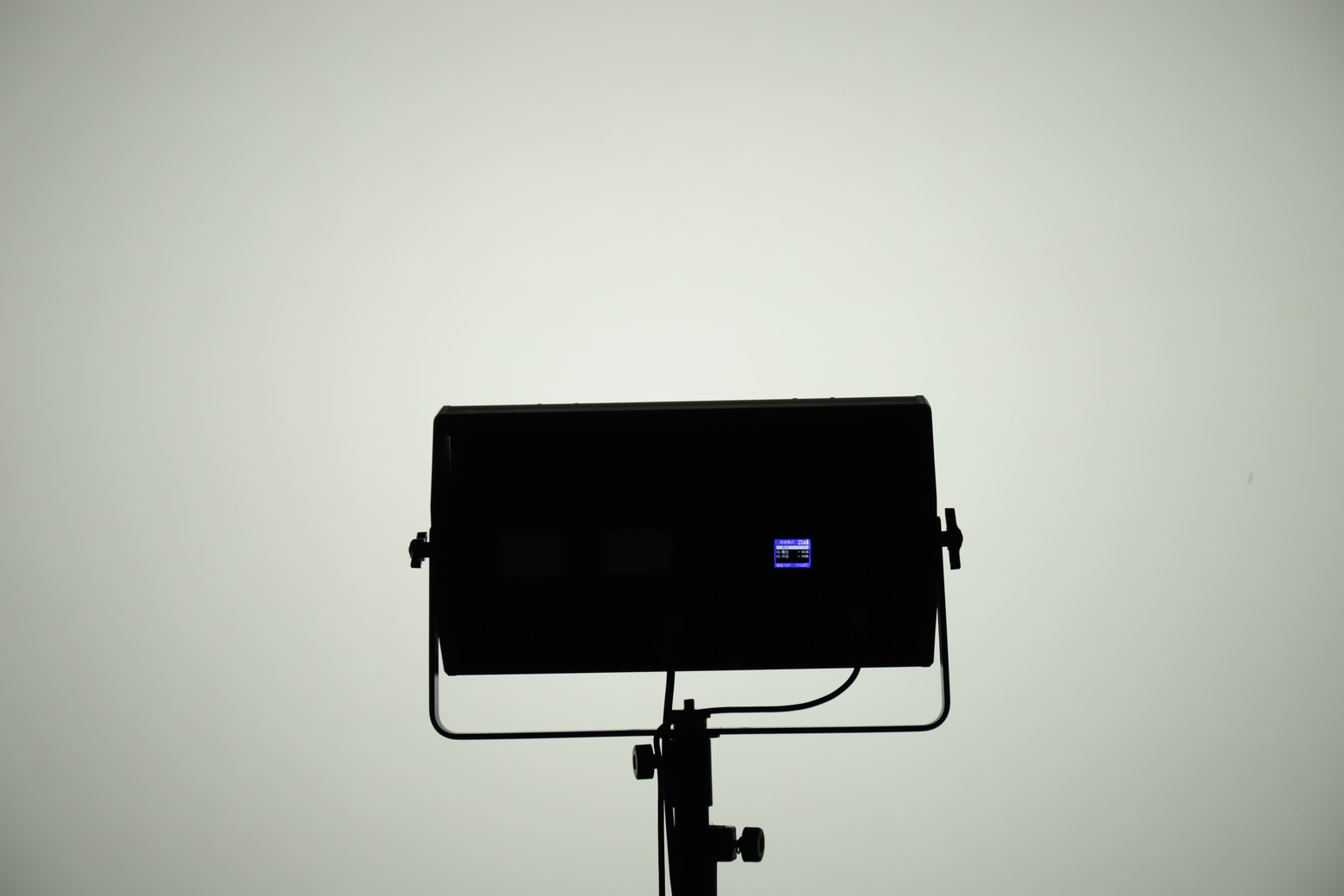

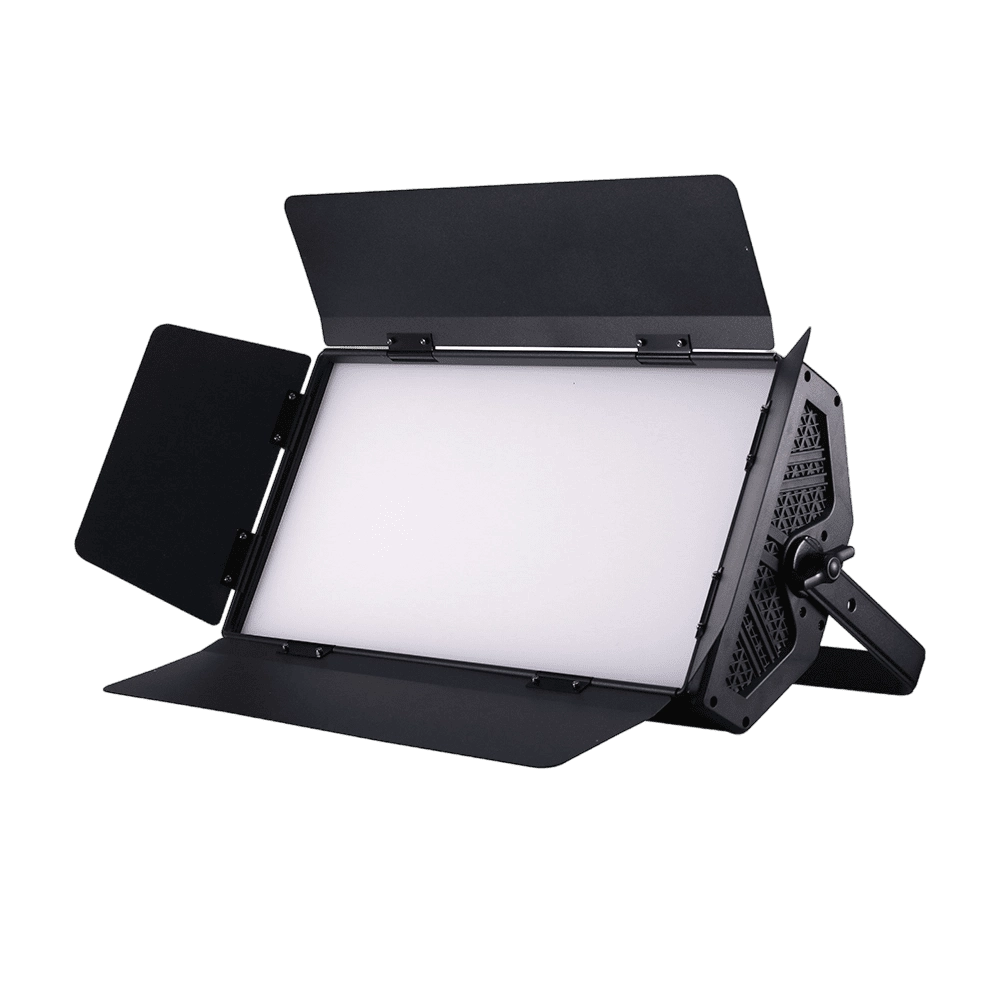

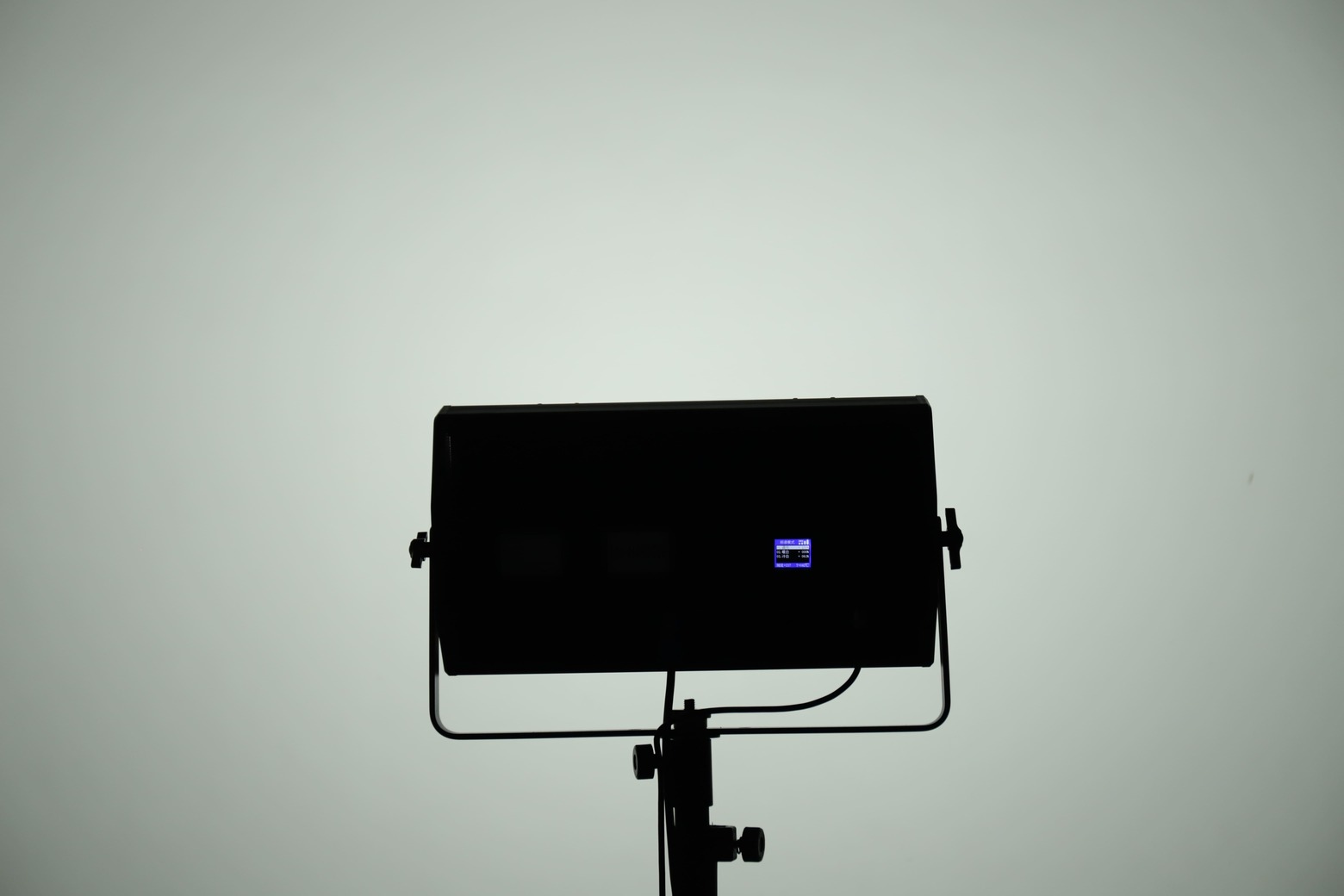

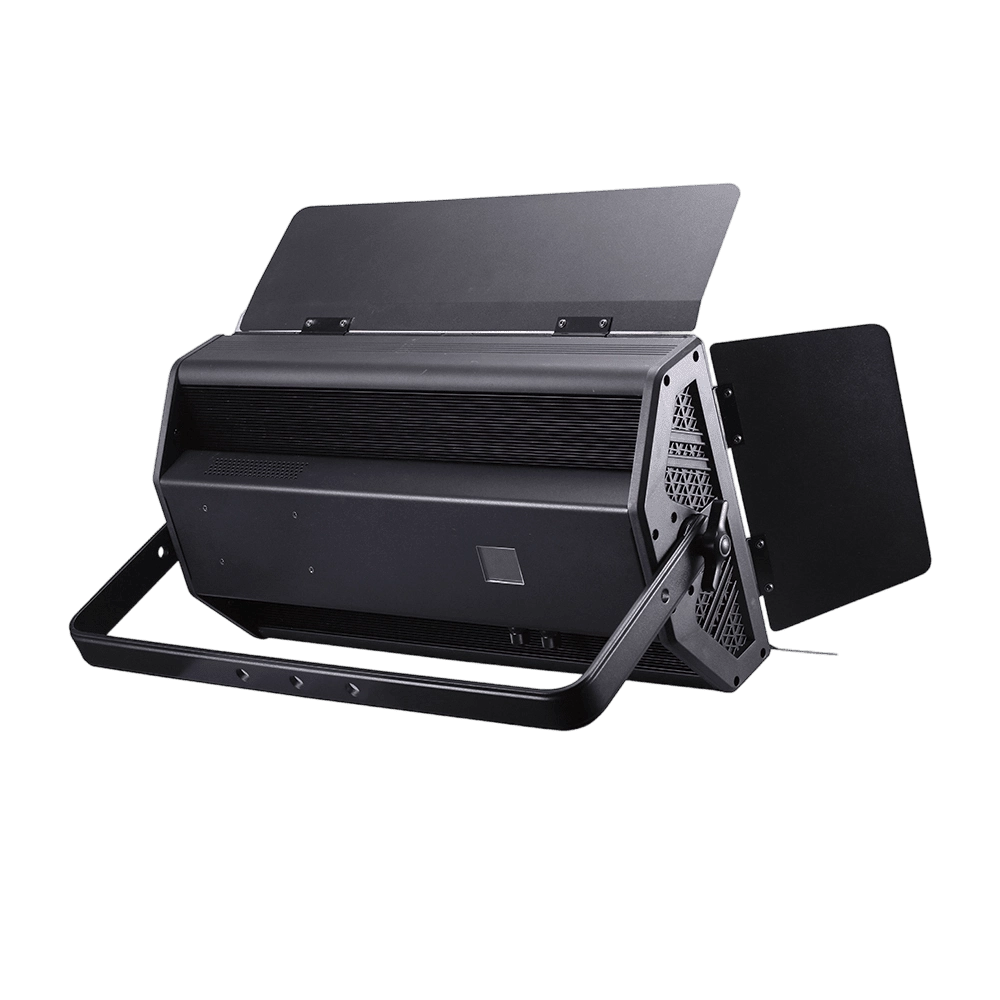

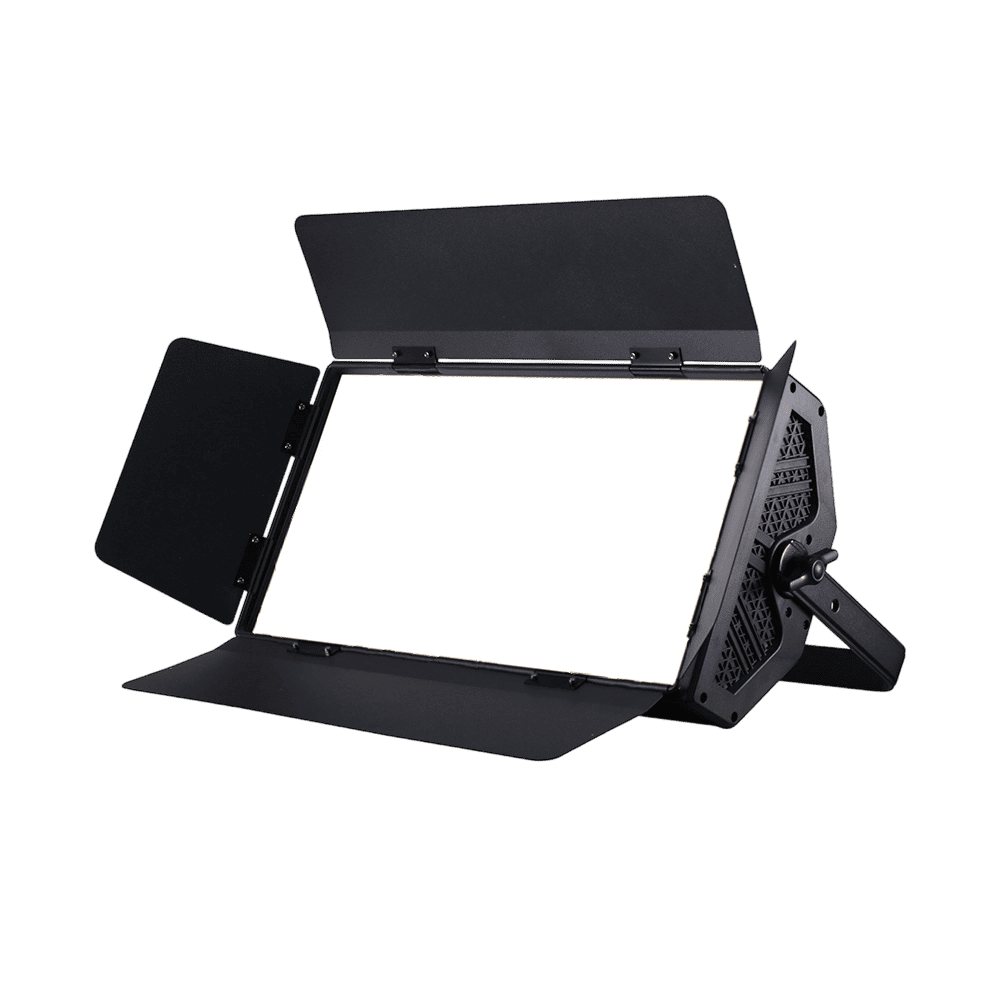

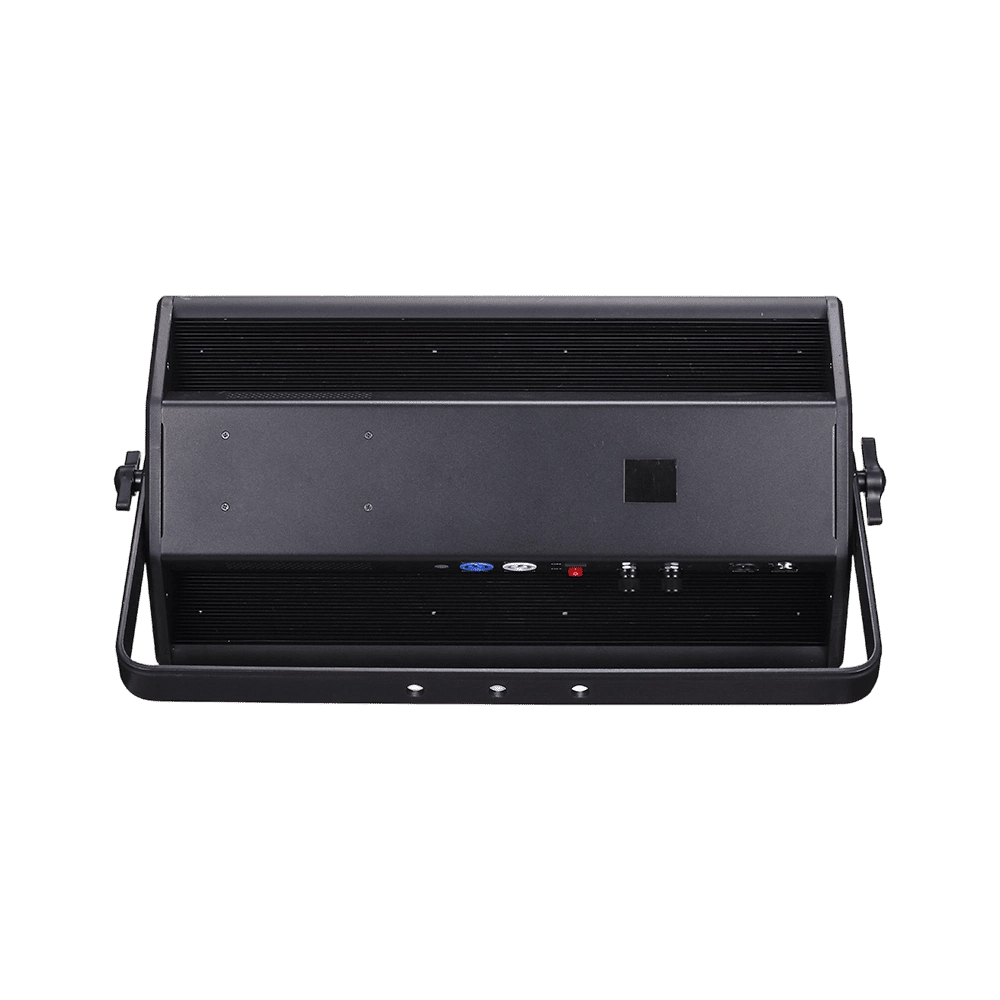

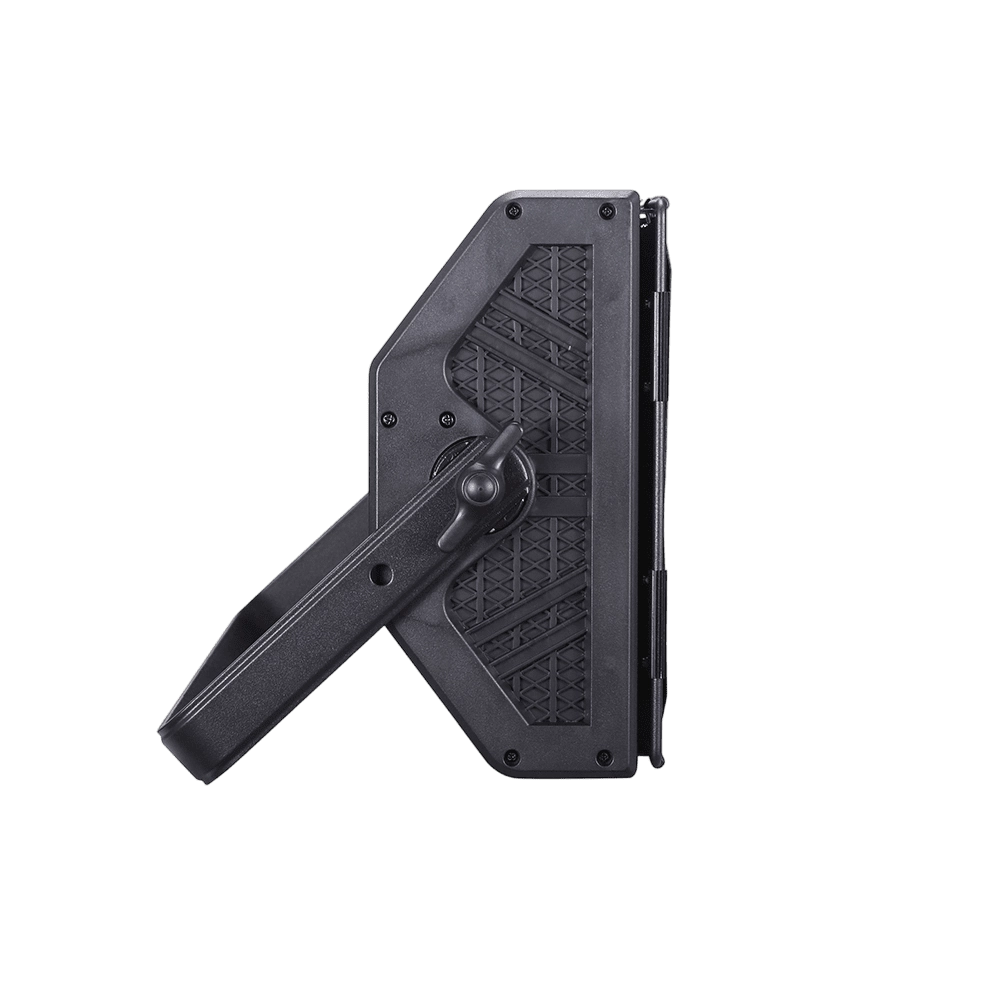

200W Bi-color LED Panel Light for Film and Television Production
This fixture features both warm white and cool white LED chips, delivering adjustable color temperature output. It incorporates an advanced high-efficiency fanless thermal design, ensuring natural heat dissipation and ultra-quiet operation, and is capable of meeting the stringent demands of broadcast television and professional filming.
Designed with user-friendly operation in mind, the light provides flicker-free dimming and smooth linear dimming control for stable and consistent performance. It is also equipped with an intelligent temperature control and protection system for enhanced reliability.
Ideal for a wide range of professional applications, this panel light is perfectly suited for large broadcasting studios, television production sets, multi-function halls, and other film and video shooting environments.
Features
The light features user-friendly operation with an intuitive design, offering flicker-free dimming and smooth, stepless dimming control for stable and reliable performance, along with an integrated temperature control and protection system.
Technical Specifications
| Specification | Details |
|---|---|
| Light Source | 1152 pieces of SMD high-CRI LED array (576 Warm White + 576 Pure White) |
| Input Voltage | AC 100–240V, 50/60 Hz |
| Rated Power | Constant output: 200W |
| Light Source Lifespan | 50,000 hours |
| Color Rendering Index (CRI) | Ra (CRI) ≥95, R9 ≥90, TLCI ≥95 |
| Color Temperature | Adjustable, 3200K–5600K |
| Dimming | 0–100% linear dimming; flicker-free, jitter-free, and step-free dimming process |
| Control Panel | 1.77-inch TFT color display with Chinese/English interface and two knobs |
| Channel Mode | 2CH / 3CH |
| Beam Angle | 120° |
| Dimming Frequency | 1.2 kHz / 6 kHz / 12 kHz / 24 kHz |
| Cooling Method | Fanless natural cooling via air convection |
| Temperature Monitoring | Built-in temperature protection sensor; over-temperature protection via automatic power regulation |
| Control Mode | DMX512 wired, Standard Mode, CCT Mode, Conference Mode |
| Protection Rating | IP20 |
| Accessories | Barn doors, power cable, signal cable, honeycomb grid (optional) |
| Net Weight | 9.85 kg |
| Gross Weight | 11.5 kg |
| Fixture Dimensions | 550 × 330 × 140mm |
| Package Dimensions | 560 × 370 × 220mm |

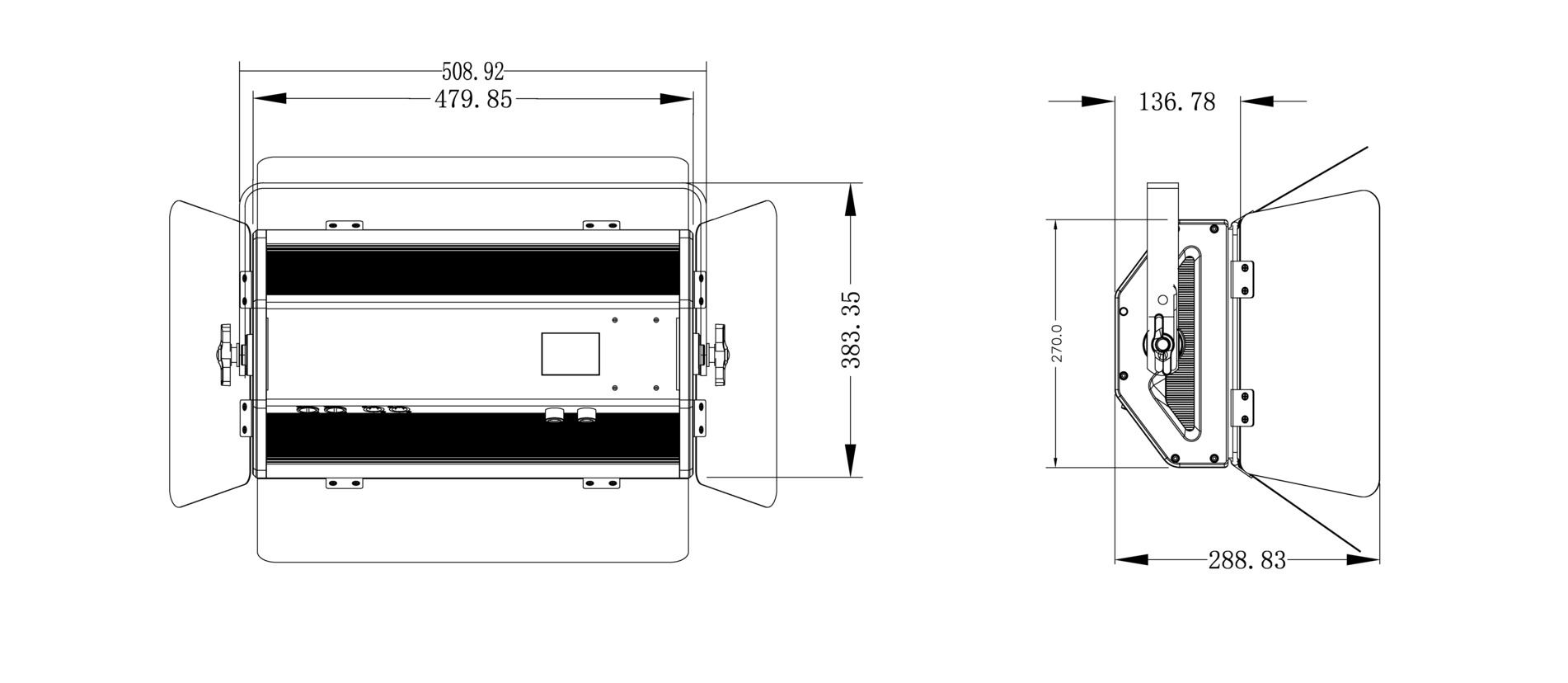

Dimensions

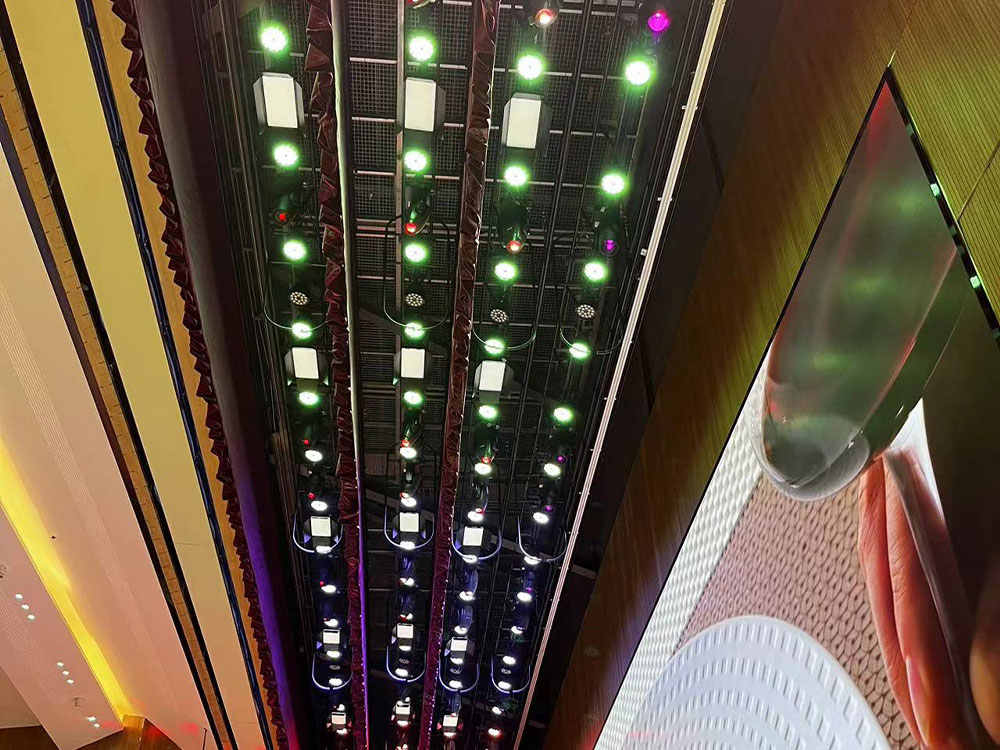

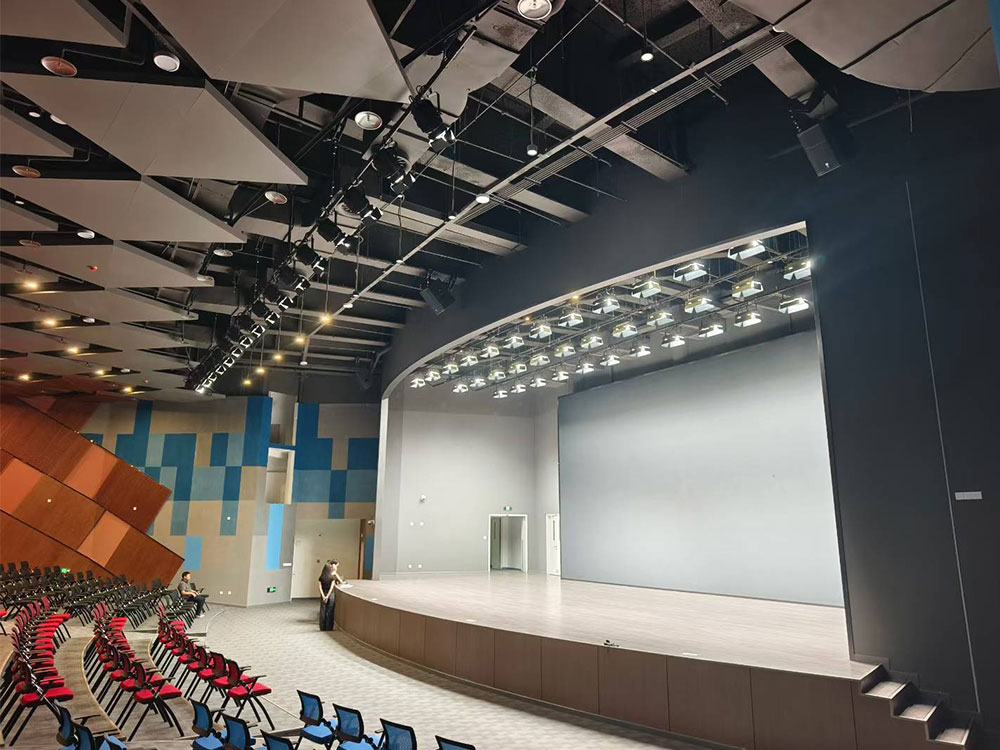

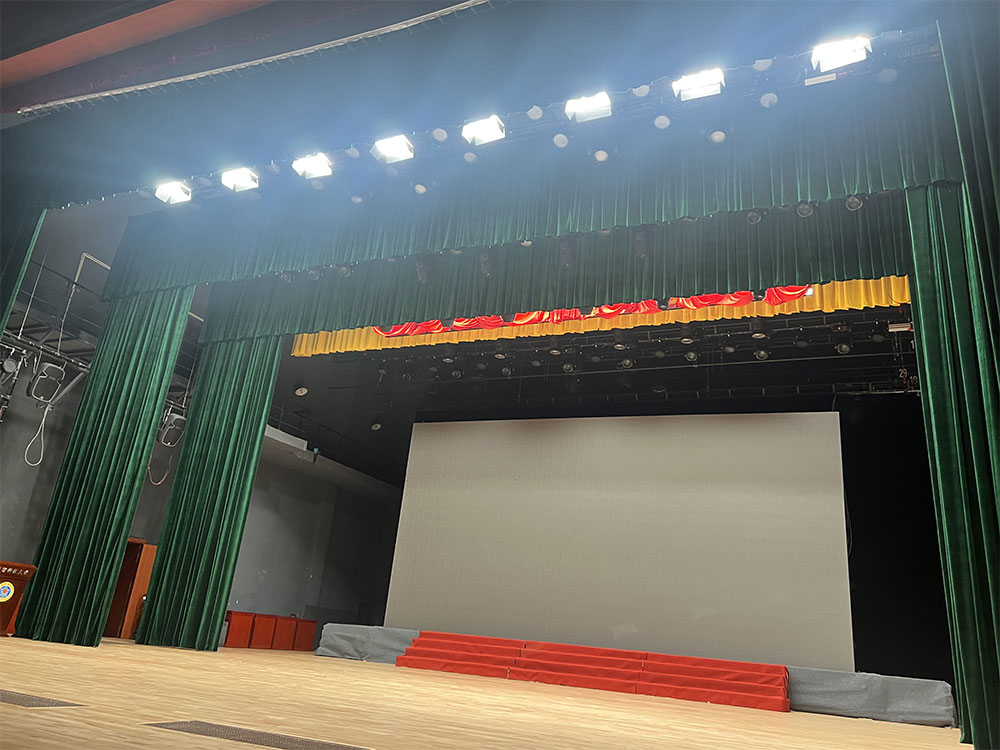

Applications
100W LED Soft Video Light for Studio
Featuring 3200K warm white and 5600K cool white LED chips, this light utilizes a fanless cooling system for completely silent operation. Designed to meet the demands of television, film, and video production, its high Color Rendering Index (CRI) ensures vivid and true-to-life imaging.
The light offers user-friendly operation with flicker-free dimming and smooth, linear DMX dimming control for consistent performance. Equipped with built-in temperature-sensing protection, it maintains reliable operation while allowing adjustable color temperature from 3200K to 5600K.
300W LED Soft Video Light for Studio
This luminaire is equipped with two types of high Color Rendering Index (CRI) and high-brightness LED chips, ensuring it meets the stringent requirements of broadcast television production.
It operates with flicker-free and smooth linear dimming, effectively preventing motion blur or smearing during filming.
This makes the light particularly suitable for use in large television studios, production sets, multi-purpose halls, and other professional video shooting environments.
300 W RGBW LED Fresnel light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96) and uniform and soft light output with smooth edge transitions. Free from harmful UV/IR radiation, it protects actors’ skin and props.
The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barndoors, it enables precise shaping of character outlines and scene layering.
100W LED Fresnel Light
The LED Studio Fresnel Spotlight is a professional lighting device specifically designed for film and television studio stages, web series sets, and high-definition live streaming rooms. It features a high-power COB LED combined with a premium Fresnel lens optical system, delivering ultra-high color rendering (Ra ≥ 95, R9 ≥ 90, TLCI ≥ 96), uniform and soft light output with smooth edge transitions. Free from UV/IR harmful radiation, it protects actors’ skin and props. The spotlight offers 0–100% 16-bit linear flicker-free dimming and supports DMX512/RDM remote control. Coupled with four-leaf barn doors, it enables precise shaping of character outlines and scene layering.
Flexible color temperature options include 3200K (warm white tungsten), 5600K (cool white daylight), or continuously adjustable from 2700K to 6500K. With minimal color deviation (SDCM), it ensures true-to-life skin tone reproduction.
